| Model Number: | CSW7583-100Y |
| MOQ: | 1 |
| Price: | discussed |
| Delivery Time: | 20-25DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
screw compressor service manual, compressor catalogue CSW7583-100(Y)
1,CSH Series with R-22,R-134a,R407C
2,CSW Series with R-22,R-134a,R407C

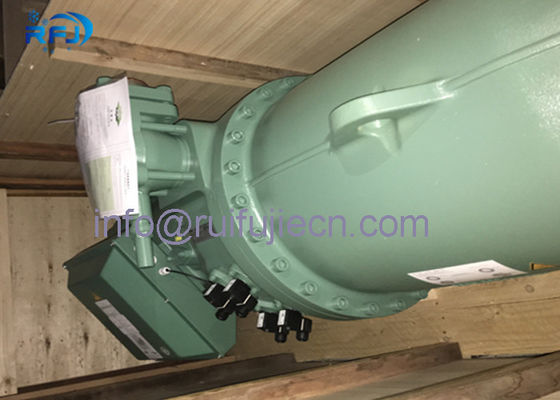

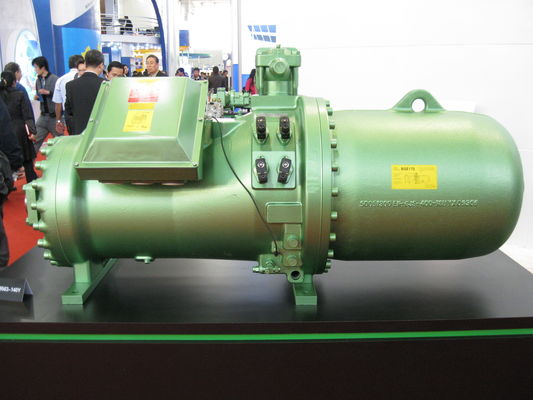

Semi-hermetic Screw compressor
Description:
1. Semi-hermetic screw compressor, specially used for low temperature application and big capacity demand.
2.With development of refrigeration market, more and more big freeze room are required, screw compressor rack is perfectly applicable for it.
3.The professional design is made to protect inversion, overheat, overload, exhaust temperature, low oil level, oil flow.
4.It is widely used in different field, like supermarket, food industry, chemical industry, hotel, restaurant, and even medical service, etc
| Technical data and Performance data | ||||||||
| compressor type |
Motor version | DispIace-ment 50/60Hz |
Refrigerating capacity Qo | Oil Charge | Motor connection | Max. operating current |
Max. power consum |
|
| to/tc 5℃/50℃ |
to/tc -10℃/45℃ |
|||||||
| ① | ② | m3/h③ | W | W | dm3 | A④ | KW④ | |
| CSHP6553-50P | 1 | 137/165 | 97630 | 61610 | 9,5 | 400V(±10%)∆/∆∆-3-50Hz 460V(±10%)∆/∆∆-3-60Hz Part Winding --- 400V(±10%)∆-3-50Hz 460V(±10%)∆-3-60Hz Y/∆⑤ |
86 | 52 |
| CSHP6563-60P | 1 | 170/205 | 122500 | 77360 | 9,5 | 108 | 65 | |
| CSHP7553-70P | 1 | 197/238 | 140900 | 86770 | 15 | 128 | 78 | |
| CSHP7563-80P | 1 | 227/274 | 162500 | 100800 | 15 | 144 | 88 | |
| CSHP7573-90P | 1 | 258/311 | 188500 | 117900 | 15 | 162 | 96 | |
| CSHP7583-100P | 1 | 295/356 | 219800 | 139400 | 15 | 170 | 101 | |
| CSHP7593-110P | 1 | 336/406 | 250200 | 158400 | 15 | 180 | 112 | |
| CSHP8553-110P | 1 | 315/380 | 236200 | 151900 | 22 | 185 | 112 | |
| CSHP8563-125P | 1 | 535/646 | 269200 | 173100 | 22 | 216 | 132 | |
| CSHP8573-140P | 1 | 535/646 | 310700 | 199900 | 22 | 246 | 150 | |
| CSHP8583-160P | 1 | 535/646 | 337300 | 212800 | 19 | 260 | 160 | |
| CSHP8593-180P | 1 | 615/742 | 393100 | 247900 | 19 | 310 | 186 | |
| CSHP9553-180P | 1 | 700/845 | 395000 | 248400 | 30 | 400V(±10%)∆-3-50Hz 460V(±10%)∆-3-60Hz Y/∆⑤ |
330 | 205 |
| CSHP9563-210P | 1 | 805/972 | 460600 | 291900 | 30 | 370 | 246 | |
| CSHP9573-240P | 1 | 910/1098 | 532300 | 339900 | 30 | 420 | 255 | |
| CSHP9583-280P | 1 | 1015/1225 | 613500 | 392600 | 30 | 450 | 280 | |
| CSHP9593-300P | 1 | 910/1098 | 709800 | 454600 | 30 | 450 | 280 | |
| CSHP95103-320P | 1 | 1015/1225 | 764700 | 485800 | 32 | 566 | 350 | |
Video
|
|
