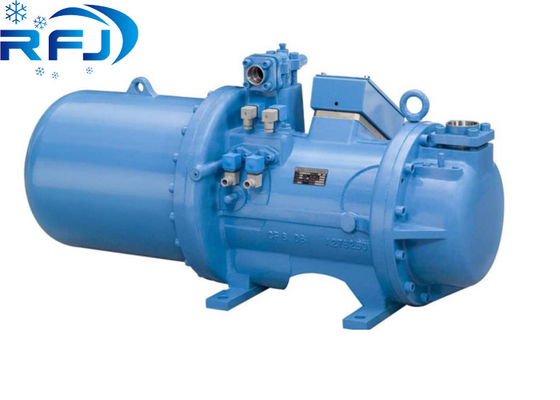

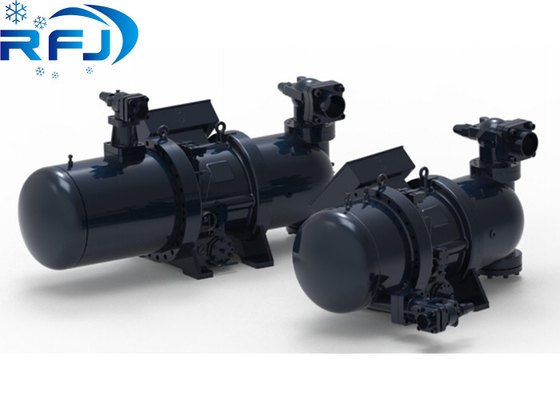

BSR 427 Series Screw Refrigeration Compressor R22 R134a 380~415V 3PH 50Hz or 220~480V 60Hz Descrition
1. Product Specification
Type |
Screw Compressor |
Model |
BSR 427 |
Refrigerant |
R410A/R22/R134a/R407C/R507 |
Displacement |
1058 m^3 |
Oil Heater |
300 W |
NW |
1300 kg |
Oil Charge |
30 L |
Power supply [V/~/Hz ] |
380~415V 3PH 50Hz or 220~480V 60Hz |
MOQ |
1 |
2.Product feature
The system incorporates a variable speed drive combined with a patented variable Vi ratio
mechanism, offering an operational frequency range of 20-80Hz and an adjustable Vi range
of 1.5-3.5 (optional). This advanced configuration delivers an average COP improvement of
10%-20% compared to constant speed models, resulting in significant energy savings of 10%-20%
on electricity bills.
A high-efficiency oil separator is integrated into the system, featuring a 3-stage oil separation
mechanism with a patented high-density stainless steel wrap-around mesh design. This innovative
design ensures low operational noise and achieves an exceptional oil separation rate of 99.7%.
Notably, a 1% reduction in oil carry-over rate translates to a 1% improvement in chiller COP.
The system is equipped with a large-area suction strainer, which effectively reduces suction pressure
drop, increases evaporating temperature, and enhances chiller operational efficiency (COP). A
reduction of just 0.1 bar in pressure drop loss can boost chiller efficiency by 4%.
The product holds comprehensive certifications, including CE, UL, and PED. Each compressor
undergoes rigorous hydraulic testing prior to shipment, ensuring the highest standards of safety
and reliability. The complete unit is PED certified, providing additional assurance of product quality
and performance.
3. Production details
Shenzhen Ruifujie Technology Co., Ltd. has a history of more than 20 years. It is a large-scale modern enterprise specializing in R&D, production and sales of refrigeration products. The company has great advantages in the trading of compressors and refrigeration accessories, and has close cooperation with major compressor manufacturers around the world.
The company develops and produces scroll, piston and screw compressor are exported to all over the world. We have strong technical strength and experience in cold storage, freezing, quick freezing, and flake ice machine, block ice machine production and sales. In recent years, the company has been in the Belt and Road. Under the advocacy of the project, we constantly tackled difficulties in overseas markets, developed rapidly, and built a number of engineering projects with modern significance.
The company has achieved breakthrough development in after-sales service, design, installation, maintenance and technical consulting, and has established long-term close cooperation with many countries around the world.
Based on the tenet of “Devotion, Integrity, Innovation, Dedication”, We will continue to provide Highest quality products for new and old customers.
4.Product qualification
Certificate, certification, patent certificate:
1)."Quality Management System Certification"
2)."Shenzhen Science and Technology Enterprise Certification"
3)."Refrigeration Equipment Air Conditioning Maintenance and Installation Enterprise Qualification Certificate"
5.FAQ
Q: Can we use our own logo?
A: Yes, we can print your private logo according to your request.
Q:What is the packaging and shipping method?
A:By Sea: Export wooden package,with refrigerant oil.
By Air: Full-sealed wooden package, without refrigerant oil.
Q:Which port does you ship from?
A:Guangzhou/Shenzhen.
Q: When can I get the price?
A: Usually we quote within 8 hours after we get your inquiry.
Q: What's your MOQ?
A: If we have the products in stock, it will be no MOQ. If we need to produce,
we can discuss the MOQ according to customer's exact situation.
Q: What is your term of payment?
A: 30% down payment before producing and 70% balance payment before shipping.
Q:What is the term of payment?
A:T/T, Western Union.
