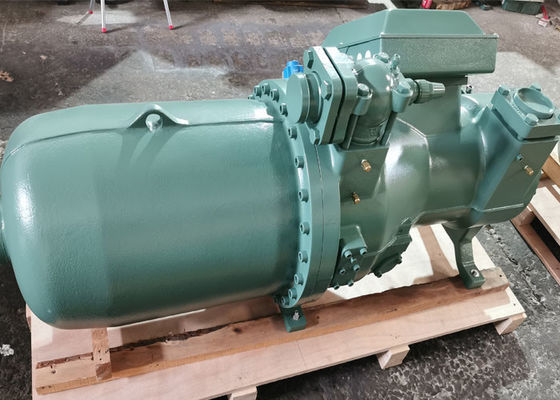

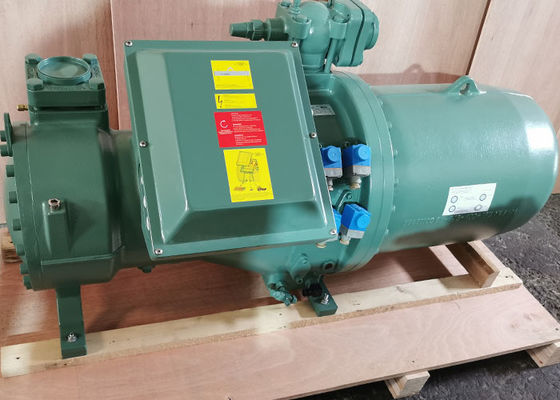

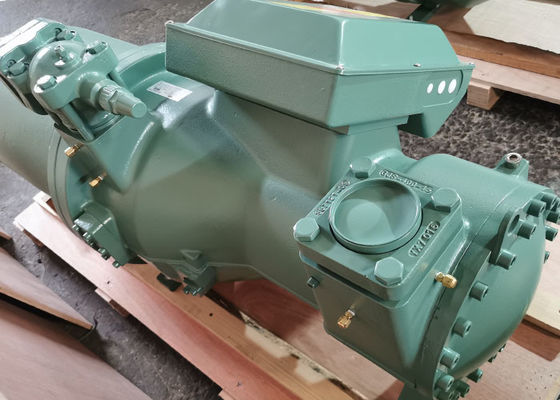

| Model Number: | CSH8553-110-38p |
| MOQ: | 1 |
| Price: | Disscussed |
| Delivery Time: | 7 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
1. Product introduction
Flexible
· Dual capacity control: switch between 4-stage and seamless capacity control – with no compressor adaptation work
· Suction and pressure connectors can be rotated in 90° increments
High efficiency profile outstandingly efficient thanks to
· Advanced geometry
· High rigidity
· Patented production process for maximum precision
· High peripheral speed
2. Product parameter(Specification)
| screw compressor | ||
| Model | CFH Displ 60 HZ | Motor HP |
| CSH6553-50 | 165 | 50 |
| CSH6563-60 | 205 | 60 |
| CSH7553-70 | 238 | 70 |
| CSH7563-80 | 274 | 80 |
| CSH7573-90 | 311 | 90 |
| CSH8553-110 | 380 | 110 |
| CSH8563-125 | 433 | 125 |
| CSH8573-140 | 495 | 140 |
| CSH9553-180 | 645 | 180 |
| CSH9563-210 | 742 | 210 |
| CSH9573-240 | 844 | 240 |
| CSH9583-280 | 971 | 280 |
| CSH9593-300 | 1098 | 300 |
3.Production details
| SI | IP | |
| Displacement(2900 RPM 50 HZ) | 170 m³/h | 6007 CFH |
| Displacement(3500 RPM 60 HZ) | 205 m³/h | 7246 CFH |
| Weight | 325 kg | 717 lb |
| Max,pressure(LP/HP) | 19/28 bar | 275/400 psi |
| Connection suction line | 54mm-2 1/8” | 54mm-2 1/8” |
| Connection discharge line | 42mm-1 5/8” | 42mm-1 5/8” |
| Motor Voltage(more on request) | 380-415V PW-3-50HZ | 440-480V PW-3-60HZ UL |
| Max operating current | 108.0 A | 108.0 A |
| Winding Radio | 50/50 | 50/50 |
| Starting current (Rotor locked) | 269.0 A D/508.0 A DD |
269.0 A D/508.0 A DD |
