| Brand Name: | Hanbell |
| Model Number: | RC2-230B |
| MOQ: | 1 |
| Price: | 2000USD |
| Delivery Time: | 7-15day |
| Payment Terms: | L/C, D/A, T/T, MoneyGram |

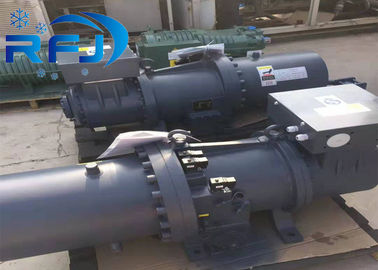

Compressors semi-hermetic screw Hanbell compressor distributor RC2-230B
Hanbell Screw Compressor
Characteristics:
RC2 series compressors not only inherit the high efficiency and reliability of RC series, but also have the following new functions to meet different customers.
Demand:
1. For different refrigerant applications, operating conditions and power input, the corresponding motor with the best efficiency is designed.
Eleven
2. Dual-capacitor adjustable application mode (multi-segment/non-segment) provides more precise and stable mechanism control capability (this is the optional function).
3. The design of floating medium pressure energy-saving hole enables the energy-saving valve to be used not only under full load, but also under partial load.
Advantages
1.All models on sale :
2.Wide range of collocation
3.High Efficiency Multinational Patent Rotor
4,Design of High Efficiency Motor
5,Long life bearing and high reliability
6,Design of Rotor Protection with Double Shells
7,Design of External Flange of Oil Separator
8,Precision Volume Control
9,Precise electronic control protection
10,Optional external cooling system
Technical Data RC2-B
| MODEL | COMPRESSOR | MOTOR | Lubricant charge |
Oil Heater |
Hydrostatic Pressure Test |
WEIGHT | |||||||||||
| Displacement 60 / 50Hz |
Rated Speed 60 / 50Hz |
VI | Cap. Control (%) | Type | Nominal Hp | Starting | Voltage (V) | nsulation | Protection | ||||||||
| m³/hr | STEP | STEPLESS | 60Hz | 50Hz | 60Hz | 50Hz | L | W | Kg/cm²G | kg | |||||||
| RC2-100B | 118/98 | 3550/2950 | 2.2 2.6 3.0 3.5 4.8 |
33, 66, 100 | 33~100 | 3 Phase, 2 Pole, Squirrel Cage, Induction Motor | 38 | 31 | Y-? PWS DOL |
208 220 230 380 440 460 480 575 |
380 400 415 |
Class F | TC Protectio | 7 | 150/300 | 42 | 280 |
| RC2-140B | 165/137 | 33, 66, 100 | 33~100 | 50 | 41 | 7 | 285 | ||||||||||
| RC2-180B | 216/180 | 33, 66, 100 | 33~100 | 66 | 55 | 7 | 335 | ||||||||||
| RC2-200B | 233/193 | 25, 50, 75, 100 | 25~100 | 70 | 58 | 8 | 425 | ||||||||||
| RC2-230B | 277/230 | 35, 50, 75, 100 | 35~100 | 81 | 67 | 14 | 555 | ||||||||||
| RC2-260B | 309/257 | 25, 50, 75, 100 | 25~100 | 90 | 75 | 14 | 560 | ||||||||||
| RC2-300B | 352/293 | 25, 50, 75, 100 | 25~100 | 107 | 89 | 16 | 600 | ||||||||||
| RC2-310B | 371/308 | 35, 50, 75, 100 | 35~100 | 110 | 91 | 16 | 580 | ||||||||||
| RC2-320B | 384/320 | 25, 50, 75, 100 | 25~100 | 114 | 94 | 16 | 600 | ||||||||||
| RC2-340B | 407/339 | 35, 50, 75, 100 | 35~100 | 121 | 101 | 16 | 620 | ||||||||||
| RC2-370B | 440/366 | 35, 50, 75, 100 | 35~100 | 130 | 108 | 16 | 640 | ||||||||||
| RC2-410B | 490/407 | 25, 50, 75, 100 | 25~100 | 146 | 121 | 380 440 460 480 575 |
16 | 740 | |||||||||
| RC2-470B | 567/471 | 25, 50, 75, 100 | 25~100 | 170 | 141 | 18 | 810 | ||||||||||
| RC2-510B | 611/508 | 35, 50, 75, 100 | 35~100 | 183 | 152 | 20 | 780 | ||||||||||
| RC2-550B | 660/549 | 25, 50, 75, 100 | 25~100 | 195 | 162 | 23 | 850 | ||||||||||
| RC2-580B | 702/583 | 35, 50, 75, 100 | 35~100 | 210 | 175 | 20 | 840 | ||||||||||
| RC2-620B | 745/619 | 35, 50, 75, 100 | 35~100 | 220 | 183 | Y-? DOL |
23 | 880 | |||||||||
| RC2-710B | 858/713 | 35, 50, 75, 100 | 35~100 | 250 | 208 | 28 | 1099 | ||||||||||
| RC2-790B | 952/791 | 30, 50, 75, 100 | 30~100 | 276 | 230 | 28 | 1180 | ||||||||||
| RC2-830B | 993/825 | 30, 50, 75, 100 | 30~100 | 290 | 234 | 28 | 1215 | ||||||||||
| RC2-930B | 1117/929 | 35, 50, 75, 100 | 35~100 | 334 | 278 | 28 | 1240 | ||||||||||
| RC2-1020B | 1223/1017 | 25, 50, 75, 100 | 25~100 | 357 | 297 | 40 | 1540 | ||||||||||
| RC2-1130B | 1350/1122 | 25, 50, 75, 100 | 25~100 | 393 | 327 | 40 | 1560 | ||||||||||
| RC2-1270B | 1521/1268 | 25, 50, 75, 100 | 25~100 | 471 | 392 | 50 | 2200 | ||||||||||
| RC2-1530B | 1847/1539 | 25, 50, 75, 100 | 25~100 | 534 | 443 | 50 | 2300 | ||||||||||
1. What is your MOQ?
Our MOQ is usually 1 set.
2. What is the price?
The price is decided by Quantity and Different Brand.
3. What is your delievery time?
The time of delievery is 3-10 working days after payment.
4. What is your payment terms?
Normally 100% T/T before delivery.
We accept 30% T/T in advance, 70% in the period of delivery.
5. What is your main products?
Refrigeration Compressor, Semi-hermetic type and Hermetic type
6. How about samples?
Sample Lead Time: 2 or 3 working days
Sample Fee: It's not free for all for customer .
