Compressor Air Cooled Cold Room Condensing Unit / Cold Storage Room Model Spb05km

Name: Compressor Air Cooled Cold Room Condensing Unit / Cold Storage Room Model Spb05km
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: SPB05KM
Price: Negotiable USD
Availability: InStock

Brand Name:	RFJ
Model Number:	SPB05KM
MOQ:	1piece
Price:	discussed
Delivery Time:	3-7 days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Color:

Blue

Power Supply:

380V 3pH 50Hz

Cooling Capacity:

15.61kw

Input Power:

6.44kw

Original:

China

Tyoe:

Condensing Unit

OEM Service:

Yes

Brand Name:

RFJ

Packaging Details:

wooden packaging

Supply Ability:

10000pieces

Highlight:

ac condenser unit

air cooled condensing unit

Product Description

Compressor Air Cooled Cold Room Condensing Unit Model Spb05km

1.Product Description

Multi protections:
Phase protection, phase lack, over current, constantly starts of compressor, discharge temp.
Fan speed regulator:
Adjust condensing fan according to condensing temp.
Operation data display function:
To check important data such as current of compressor, and condensing temp.

2.Picture

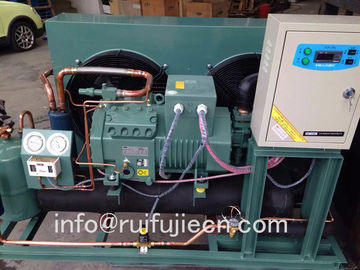

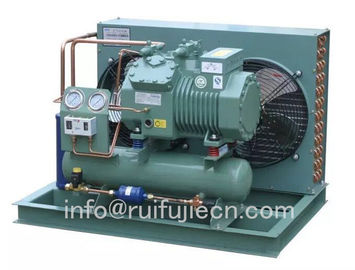

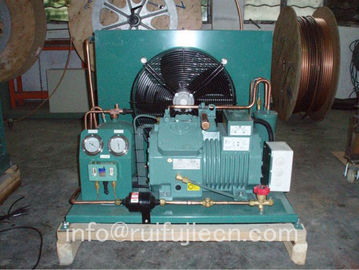

Compressor Air Cooled Cold Room Condensing Unit / Cold Storage Room Model Spb05km 0

Compressor Air Cooled Cold Room Condensing Unit / Cold Storage Room Model Spb05km 1

3.Technical

Technical Data Of Air Cooled Compressor Condensing Unit
Air-cooled Compressor Condensing Unit with medium Temperature
Condensing Unit model	Compressor Model	Power Supply	refrigerating capacity(KW)	Air cooled Condenser			Specification of connecting tube
				Model	Total(m³/h)	Dia of fan (mm)	Out let(mm)	Return gas(mm)
SPB03KM	2DES-3Y	380V 3PH 50HZ	7.68	FHN28	4400	350	10	16
SPB04KM	2CES-4Y		9.50	FHN37.5	4400	350	10	16
SPB05KM	4FES-5Y		10.28	FHN45	6000	400	12	16
SPB06KM	4EES-6Y		12.89	FHN55	6000	400	12	22
SPB07KM	4DES-7Y		15.61	FHN71	8800	350	12	22
SPB09KM	4CES-9Y		18.91	FHN80	12000	400	12	22
SPB10KM	4VES-10Y		19.61	FHN92	12000	400	12	28
SPB12KM	4TES-12Y		23.80	FHN100	12000	400	16	28
SPB15KM	4PES-15Y		27.00	FHN131	20000	450	16	28

4.FAQ

* Why the temperature is so low?

Fresh food need to reach -20C within 4-6 hours so that need -35C or -40C cold room temperature.

* Why we choose such big compressor horsepower?

Fresh food has a lot of heat and need the big compressor horsepower to cool down within 4-6 hours.

* Why does the blast cold room need to use the vertical air cooler?

The vertical air cooler have big fin spacing, big air flow and very easy to install
