| Brand Name: | compressor |
| Model Number: | 4GE-23Y |
| MOQ: | 1 pc |
| Price: | discussed |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
Product Description

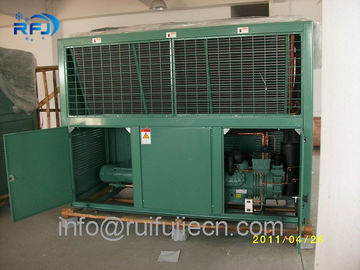

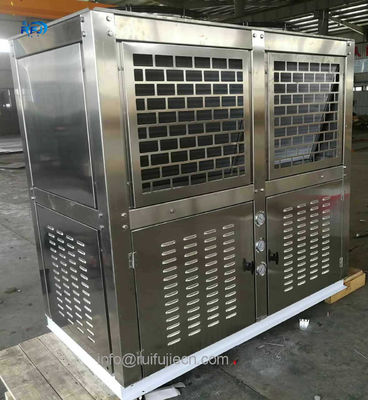

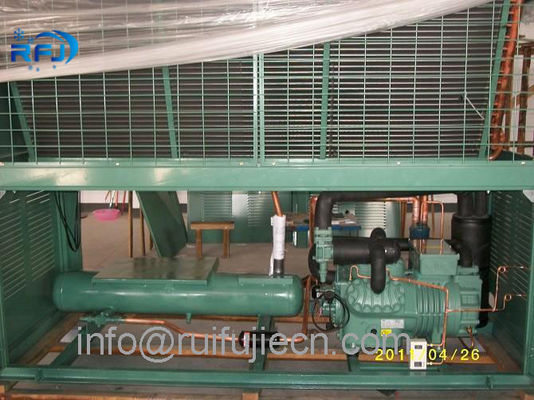

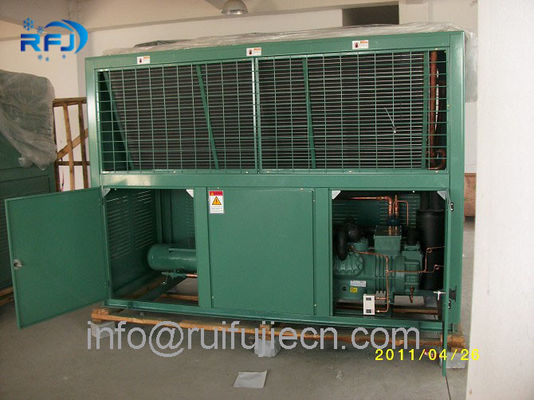

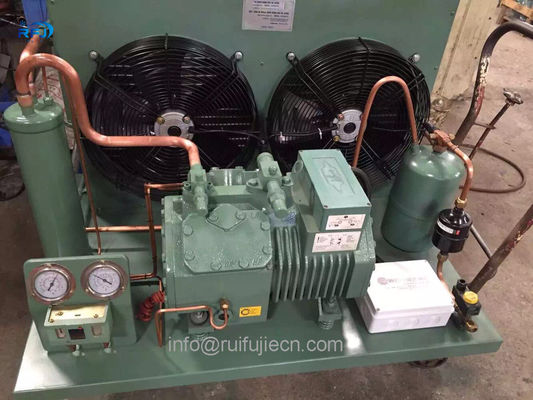

RFJ 4GE-23Y box type air-cooled condenser unit for deep freezer
Features:
1.box-type structure, compact structure, beautiful appearance.
2. Scientific design, steady air flow, can fully exert the condenser heat transfer capacity.
3. Rational performance design, high energy efficiency.
4. Axial fan, good appearance, low noise operation.
5. Maintain easily (panel is easy to remove)
6. Keep in touch well with our suppliers, which can guarantee the raw materials quality to ensure that provide customers with high-quality Products.
Refrigeration industry, cold room project.
Agriculture, food, restaurant,chemical industry.
We offer customize design service.
F: stands for air cooled type
U: stands for condensing unit with u type condenser
BZ: code of compressor, e.g. (BZ)
XXX: stands for air cooled type
Compressor motor rated power(HP or HP code)
X: stands for air cooled type
HM stands for high&medium-temp,
H stands for high temp,
M stands for medium temp,
L stands for low temp,
S stands for quick frozen.
| Top Discharge Compressor Condensing Unit (U Type) | ||||||||||||
| Product Description: 1.condensing unit was assembled completely,installation is not constraint by site,a little space occupation. 2.double coils for condenser,eliminating the loss of heat exchange. 3.on the design of top discharge,air circulation consistent with the principle of air flow,no reflow phenomenon and improve the efficiency of heat transfer. 4.with external rotor motor,low noise,low power,large air volume. 5.original compressor,inner of condensing unit with the perfect protection system. |
||||||||||||
| Technical Parameters | ||||||||||||
| performance Modle | RFJ030H(U) | RFJ040H(U) | RFJ050H(U) | RFJ060H(U) | performance Modle | RFJ080H(U) | RFJ100H(U) | RFJ120H(U) | RFJ1500H(U) | |||
| nominal power(HP) | 3HP | 4HP | 5HP | 6HP | nominal power(HP) | 8HP | 10HP | 12HP | 15HP | |||
| Norminal refrigerating capacity (KW) |
5.05 | 6.05 | 8.00 | 10.20 | Norminal refrigerating capacity (KW) |
11.00 | 17.80 | 20.40 | 25.60 | |||
| Motor power (W) |
180W | 250W | 2*180W | 2*250W | Motor power (W) |
2*250W | 2*450W | 2*450W | 2*600W | |||
| Dia of fan (mm) | Φ400 | Φ450 | Φ400 | Φ450 | Dia of fan (mm) | Φ450 | Φ500 | Φ500 | Φ550 | |||
| Number of electric motors (a) | 1 | 1 | 2 | 2 | Number of electric motors (a) | 2 | 2 | 2 | 2 | |||
| Air Voume (M3/H) |
4500 | 4500 | 6220 | 6220 | Air Voume (M3/H) |
9000 | 13000 | 13000 | 16600 | |||
| Import and export | In(mm) | Φ16 | Φ16 | Φ16 | Φ22 | Import and export | In(mm) | Φ22 | Φ28 | Φ28 | Φ28 | |
| Out (mm) | Φ10 | Φ10 | Φ12 | Φ12 | Out (mm) | Φ12 | Φ12 | Φ16 | Φ16 | |||
| dimension(mm) | L(mm) | 750 | 1000 | 1270 | 1270 | dimension(mm) | L(mm) | 1370 | 1410 | 1500 | 1700 | |
| w(mm) | 650 | 650 | 700 | 700 | w(mm) | 800 | 850 | 900 | 900 | |||
| 820 | 820 | 820 | 920 | 920 | 1030 | 1130 | 1130 | |||||
| installation size(mm) | a(mm) | 420 | 700 | 870 | 870 | installation size(mm) | a(mm) | 970 | 910 | 900 | 1100 | |
| b(mm) | 720 | 720 | 770 | 770 | b(mm) | 860 | 910 | 960 | 1060 | |||
| Note:1.above datas are on the base of condensing temperature is 40℃ ,evaporation temperature is -15℃ , 2.reserve the right of design modified without prior inform. |
||||||||||||
| Side Discharge Compressor Condensing Unit (Ⅶ Type) | ||||
| Product Description: 1.condensing unit was assembled completely,installation is not constraint by site,a little space occupation. 2.original compressor,inner of condensing unit with the perfect protection system. 3.on the design of side discharge,and condenser and compressor separate to increase the speed of heat transfer and efficiency maximum. 4.with external rotor motor,low noise,low power,large air volume. |
||||
| Technical Parameters | ||||
| performance Modle | RFJ080H(VII) | RFJ100H(VII) | ||
| Norminal refrigerating capacity (KW) |
13.0 | 16.5 | ||
| area(㎡) | 70 | 85 | ||
| Motor power (W) |
2*180W | 2*250W | ||
| Dia of fan (mm) | Φ400 | Φ450 | ||
| Number of electric motors (a) | 2 | 2 | ||
| Air Voume (M3/H) |
4500x2 | 5000x2 | ||
| dimension(mm) | L(mm) | 1700 | 1800 | |
| w(mm) | 700 | 750 | ||
| 850 | 940 | |||
| installation size(mm) | a(mm) | 1300 | 1400 | |
| b(mm) | 660 | 710 | ||
| performance Modle | RFJ120H(VII) | RFJ150H(VII) | RFJ200H(VII) | |
| Norminal refrigerating capacity (KW) |
21 | 25 | 29 | |
| area(㎡) | 105 | 130 | 130 | |
| Motor power (W) |
2*250W | 2*450W | 2*600W | |
| Dia of fan (mm) | Φ450 | Φ500 | Φ550 | |
| Number of electric motors (a) | 2 | 2 | 2 | |
| Air Voume (M3/H) |
5000x2 | 7000x2 | 8500x2 | |
| dimension(mm) | L(mm) | 1900 | 2000 | 2200 |
| w(mm) | 800 | 870 | 870 | |
| H(mm) | 1040 | 1150 | 1150 | |
| 1040 | 1150 | 1150 | ||
| installation size(mm) | a(mm) | 1500 | 1600 | 1800 |
| b(mm) | 760 | 830 | 830 | |
| Note:1.above datas are on the base of condensing temperature is 40℃ ,evaporation temperature is -18℃ , 2.reserve the right of design modified without prior inform. |
||||
|
|
