| Brand Name: | Maneurop |
| Model Number: | MT80/Wn10H |
| MOQ: | 1 |
| Price: | discussed |
| Delivery Time: | 5-7DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

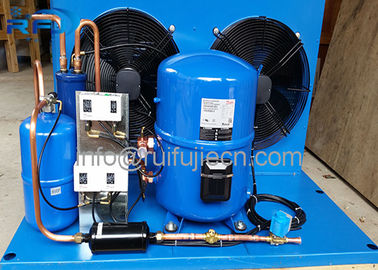

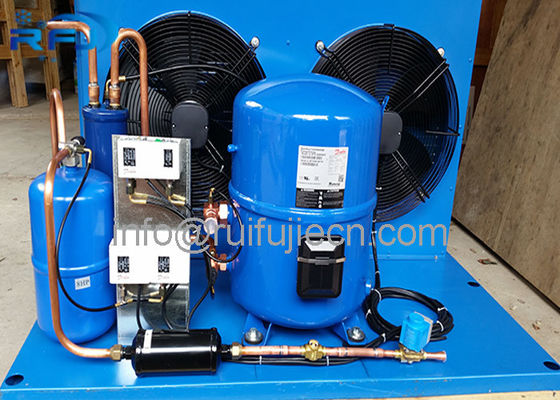

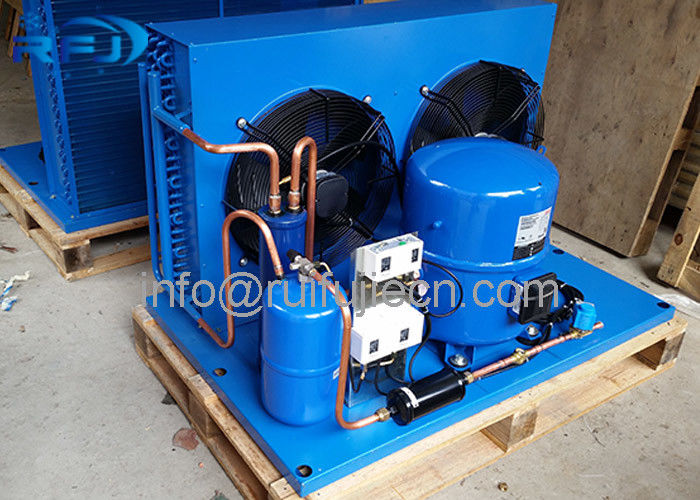

Maneurop Hermetic Compressor condensing Unit
MG series compressor condensing unit consists of France-built Maneurop MT and LT series hermetic compressor,premium condenser,motor,base plate,liquid receiver and pressure controller.it`s fit for R-22or R404A.the unit is high inefficiency,saving make,and cold storage at modium or low temperature.
Main technical parameters
| model | nominal | refrigerating | specifications of connecting tube | cooling water consumption m3/h | dimension(mm) | installation size(mm) | ||||
| HP | w | return gas(mm) | outlet(mm) | A | B | C | a | b | ||
| MT36/WN03M | 3 | 4330 | 16 | 10 | 1.3 | 810 | 300 | 600 | 600 | 250 |
| MT50/WN05M | 4 | 5210 | 22 | 12 | 1.6 | 1010 | 350 | 720 | 780 | 300 |
| MT64/WN05M | 5 | 6740 | 22 | 12 | 2 | 1010 | 350 | 720 | 850 | 300 |
| MT80/WN08M | 6.7 | 8580 | 28 | 16 | 2.6 | 1080 | 350 | 720 | 890 | 300 |
| MT100/WN10M | 8 | 10210 | 28 | 16 | 3.2 | 1120 | 350 | 800 | 890 | 300 |
| MT125/WN10M | 10 | 13710 | 28 | 16 | 4 | 1120 | 350 | 800 | 990 | 300 |
| MT160/WN15M | 13 | 17300 | 28 | 16 | 5.2 | 1220 | 400 | 800 | 780 | 350 |
| MT36/WN05H | 3 | 6980 | 16 | 10 | 1.4 | 1010 | 350 | 720 | 780 | 300 |
| MT40/WN05H | 3.5 | 7570 | 22 | 12 | 1.6 | 1010 | 350 | 720 | 780 | 300 |
| MT50/WN06H | 4 | 8680 | 22 | 12 | 2 | 1010 | 350 | 720 | 850 | 300 |
| MT64/WN08H | 5 | 11320 | 22 | 12 | 2.6 | 1080 | 350 | 720 | 890 | 300 |
| MT80/WN10H | 6.7 | 14250 | 28 | 16 | 3 | 1120 | 350 | 800 | 890 | 300 |
| MT100/WN10H | 8 | 17120 | 28 | 16 | 3.2 | 1120 | 350 | 800 | 890 | 300 |
| MT125/WN15H | 10 | 22510 | 28 | 16 | 4.9 | 1220 | 400 | 800 | 990 | 350 |
| MT160/WN15H | 13 | 28250 | 28 | 16 | 5.2 | 1220 | 400 | 800 | 990 | 350 |
Note:medium high temperature condition:evaporation temperature is -15ºC,condensing temperature in 50ºC medium and high temperature condition:evaporation temperature in -5ºC,condensing temperature is 50ºC
Video
Video
Video
|
|
