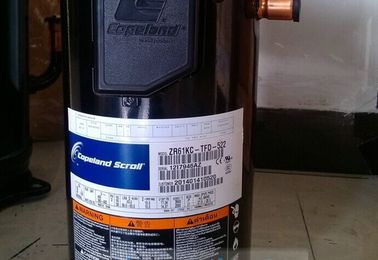

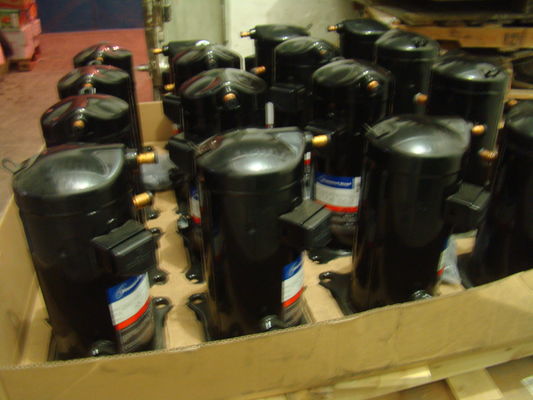

Black Original Copeland Screw Compressor ZR61KC-TFD-522 with 380V 5HP and 47600BTU and oil 1.95L

Name: Black Original Copeland Screw Compressor ZR61KC-TFD-522 with 380V 5HP and 47600BTU and oil 1.95L
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: ZR61KC-TFD-522
Price: Negotiable USD
Availability: InStock

Brand Name:	Copeland
Model Number:	ZR61KC-TFD-522
MOQ:	1pcs
Price:	discussed
Delivery Time:	3-7 working days after receiving payment
Payment Terms:	L/C, T/T, Western Union, Western Union, T/T, D/P, MoneyGram, D/A

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/UL

Piston Type:

Scroll

Power Source:

AC Power

Drive Mode:

Electric

Horse Power:

5HP

Configuration:

Stationary

Temperature:

Med/High Temperature

Lubrication Style:

Oil-less

Mute:

Yes

Weight:

36.1Kgs

Oil Injection:

1.95L

COP:

3.14

EER:

10.7

DBA:

71.0

Packaging Details:

Wooden case or 12 units in one pallet

Supply Ability:

5,000pcs per month

Highlight:

copeland a c compressor

commercial refrigeration compressor

Product Description

Copeland Scroll Air conditionary Compressor R22 380v 5HP ZR61KC-TFD-522

Specifications:

Copeland scroll compressor ZR61
1. higher efficiency
2. lower sound levels
3. superior durability
4. Power:5HP,380V ,R22

ZR Compressor features:

Power: 1.5-15 HP
Med/High Temperature
Superior efficiency
Outstanding reliablity
Fewer moving parts
Very low noise/gas pulsation.

We can supply more ZR models as follow:

Phase	Model	Horse Power/HP	Displacement (m3/h)	ARI 7.2/54.4°C		Weight/Kg	Height /mm
Phase	Model	Horse Power/HP	Displacement (m3/h)	Cooling (W)	Input (W)	Weight/Kg	Height /mm
1 Phase	ZR16K3-PFJ	1.33	3.97	4010	1320	25.9	370.4
	ZR18K3-PFJ	1.5	4.37	4400	1440	25.9	370.4
	ZR20K3-PFJ	1.69	4.76	4890	1600	25.9	370.4
	ZR22K3-PFJ	1.83	5.34	5330	1730	25.9	382.8
	ZR24K3-PFJ	2	5.92	5920	1870	26.3	382.8
	ZR26K3-PFJ	2.17	6.27	6330	2000	25.9	382.8
	ZR28K3-PFJ	2.33	6.83	6910	2150	27.2	382.8
	ZR30K3-PFJ	2.5	7.3	7380	2290	28.6	405.5
	ZR32K3-PFJ	2.67	7.55	7760	2410	28.1	405.5
	ZR34K3-PFJ	2.83	8.02	8200	2520	29.5	405.5
	ZR36K3-PFJ	3	8.61	8790	2700	29.5	405.5
	ZR40K3-PFJ	3.33	9.43	9670	2970	29.9	419.3
	ZR42K3-PFJ	3.5	9.94	10100	3120	29.9	419.3
	ZR47K3-PFJ	3.92	11.16	11500	3530	30.4	436.6
3 Phase	ZR22K3-TFD	1.83	5.34	5330	1650	25.9	382.8
	ZR24K3-TFD	2	5.92	5920	1840	25.9	382.8
	ZR26K3-TFD	2.17	6.27	6330	1960	25.9	382.8
	ZR28K3-TFD	2.33	6.83	6910	2150	26.3	405.5
	ZR30K3-TFD	2.5	7.3	7380	2290	26.3	405.5
	ZR32K3-TFD	2.67	7.55	7760	2410	26.3	405.5
	ZR34K3-TFD	2.83	8.02	8200	2500	28.6	405.5
	ZR36K3-TFD	3	8.61	8790	2680	27.2	405.5
	ZR40K3-TFD	3.33	9.43	9670	2950	28.6	419.3
	2ZR42K3-TFD	3.5	9.94	10100	3090	28.6	419.3
	ZR45KC-TFD	3.75	10.73	11000	3380	28.6	436.3
	ZR46KC-TFD	3.83	10.95	11100	3390	34.9	456.9
	ZR47KC-TFD	3.92	11.16	11500	3500	28.6	436.3
	ZR49KC-TFD	4.08	11.45	11700	3600	35.4	456.9
	ZR54KC-TFD	4.5	12.73	12900	4030	35.4	456.9
	ZR57KC-TFD	4.75	13.42	13700	4160	35.4	456.9
	ZR61KC-TFD	5.08	14.34	14600	4430	35.8	456.9
	ZR68KC-TFD	5.75	16.18	16400	4970	38.1	456.9
	ZR72KC-TFD	6	17.05	17400	5250	38.1	456.9
	ZR81KC-TFD	6.75	19.2	19690	5830	40.9	462.4
	ZR84KC-TFD	7	19.75	20330	6140	56.7	495.3
	ZR94KC-TFD	8	22.14	22940	7000	58	495.3
	ZR108KC-TFD	9	25.15	26250	7830	72.6	533.4
	ZR125KC-TFD	10	28.77	30470	9060	78	533.4
	ZR90K3-TWD	7.5	20.9	21540	6620	91	542
	ZR11M3-TWD	9	24.9	25840	7805	91	542
	ZR12M3-TWD	10	28.8	29890	8955	92	542
	ZR16M3-TWD	13	35.6	37330	11175	98	557
	ZR19M3-TWD	15	42.1	45170	13400	112	596

Black Original Copeland Screw Compressor ZR61KC-TFD-522 with 380V 5HP and 47600BTU and oil 1.95L 0

Black Original Copeland Screw Compressor ZR61KC-TFD-522 with 380V 5HP and 47600BTU and oil 1.95L 1

Black Original Copeland Screw Compressor ZR61KC-TFD-522 with 380V 5HP and 47600BTU and oil 1.95L 2
