| Brand Name: | Bitz |
| Model Number: | Piston |
| MOQ: | 1 |
| Price: | Discussed |
| Delivery Time: | 1 MONTH |
| Payment Terms: | T/T, Western Union |

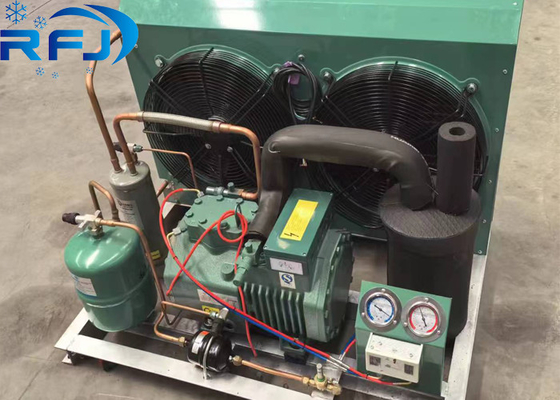

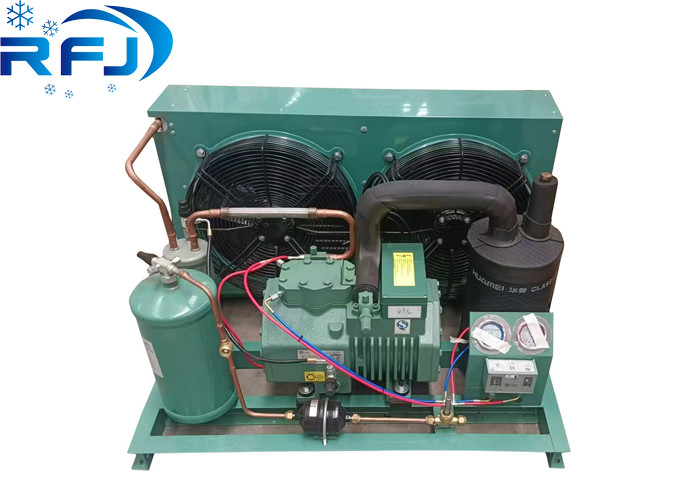

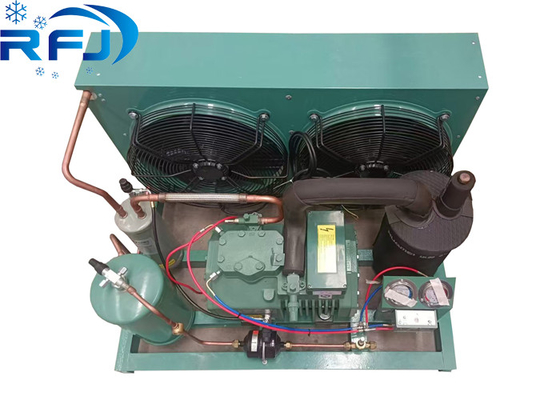

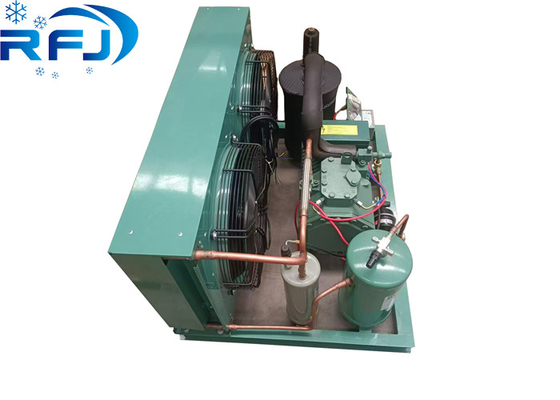

Air Cooled 1 to 70HP Piston Refrigeration Condensing Unit R404A R22 R134a R507 Descrition
1. Product Specification
|
Name
|
Air Cooled 1 to 70HP Piston Refrigeration Condensing Unit R404A R22 R134a R507 Descrition |
|
Number of cylinders
|
2-8 |
| Horsepower | 2~70 HP |
| Refrigerant | R404a;R22;R507;R134a |
2.Product feature
❏ Extended application range
● R134a up to tc = 85°C
● R404A and R507A up to tc = 62°C
❏ Energy efficient
high cooling capacity and minimum energy
requirement:
● highly efficient working valves
● minimum clearance volume
● efficient, large-volume motor
● reduced flow losses at low condensing temperatures
❏ Wear resistant drive gear
● surface hardened eccentric shaft and crankshaft
● low friction bearings and aluminium pistons
● hard chrome plated piston rings
❏ Quiet with low vibration
● optimized mass balance
● low discharge gas pulsations due to special cylinder
Head design
❏ Minimum space requirement
● very compact design
❏ Robust
● solid valve plate design
● valves made of impact resistant spring steel
● wear resistant drive gear
❏ Efficient capacity control
● cylinder shut-off or VSD capacity control possible
● cylinder shut-off possible from 18 m3/h displacement
(50 Hz) on
– 4 cylinder compressor: 50%
– 6 cylinder compressor: 66% / 33%
– 8 cylinder compressor: 75% / 50%
● Fast cycling cylinder shut-off, e.g. 4 cylinder compressor on
both cylinder heads: 100% to approx. 10%
● tandem compressors from 22,7 m3/h to 303 m3/h (50 Hz)
● approved parallel operation
● VSD capacity control from 25 to 70 Hz – subject to
conditions
3. Production details

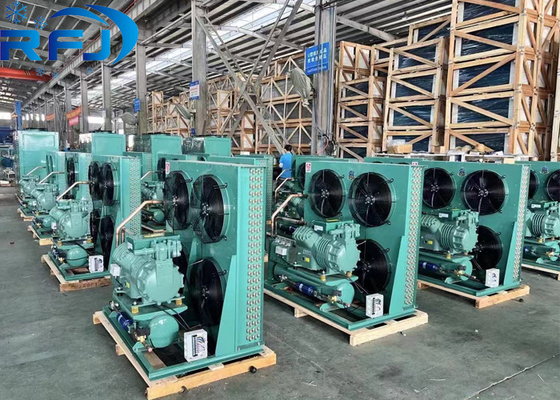

Shenzhen Ruifujie Technology Co., Ltd. has a history of more than 20 years. It is a large-scale modern enterprise specializing in R&D, production and sales of refrigeration products. The company has great advantages in the trading of compressors and refrigeration accessories, and has close cooperation with major compressor manufacturers around the world.
The company develops and produces scroll, piston and screw compressor are exported to all over the world. We have strong technical strength and experience in cold storage, freezing, quick freezing, and flake ice machine, block ice machine production and sales. In recent years, the company has been in the Belt and Road. Under the advocacy of the project, we constantly tackled difficulties in overseas markets, developed rapidly, and built a number of engineering projects with modern significance.
The company has achieved breakthrough development in after-sales service, design, installation, maintenance and technical consulting, and has established long-term close cooperation with many countries around the world.
Based on the tenet of “Devotion, Integrity, Innovation, Dedication”, We will continue to provide Highest quality products for new and old customers.
4.Product qualification
Certificate, certification, patent certificate:
1)."Quality Management System Certification"
2)."Shenzhen Science and Technology Enterprise Certification"
3)."Refrigeration Equipment Air Conditioning Maintenance and Installation Enterprise Qualification Certificate"
5.FAQ
Q: Can we use our own logo?
A: Yes, we can print your private logo according to your request.
Q:What is the packaging and shipping method?

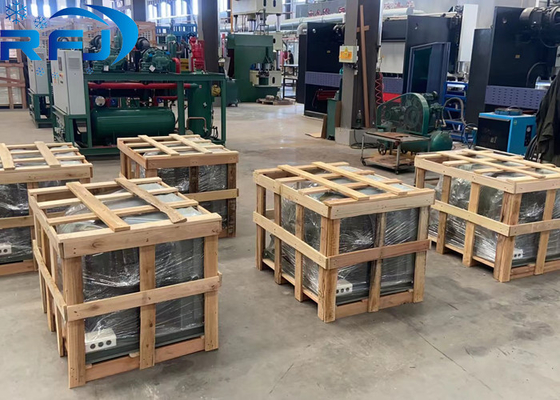

A:By Sea: Export wooden package,with refrigerant oil.
By Air: Full-sealed wooden package, without refrigerant oil.
Q:Which port does you ship from?
A:Guangzhou/Shenzhen.
Q: When can I get the price?
A: Usually we quote within 8 hours after we get your inquiry.
Q: What's your MOQ?
A: If we have the products in stock, it will be no MOQ. If we need to produce,
we can discuss the MOQ according to customer's exact situation.
Q: What is your term of payment?
A: 30% down payment before producing and 70% balance payment before shipping.
Q:What is the term of payment?
A:T/T, Western Union.
Video
Video
Video
|
|
