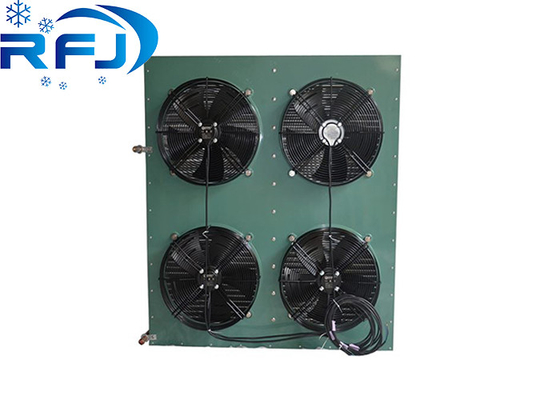

Air Coolers & Freezers Unit Coolers Evaporator For Refrigeration Unit

Name: Air Coolers & Freezers Unit Coolers Evaporator For Refrigeration Unit
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: AT301C4/AT503C8 series
Price: Negotiable USD
Availability: InStock

Brand Name:	auks
Model Number:	AT301C4/AT503C8 series
MOQ:	1pcs
Price:	discussed
Delivery Time:	7-10 working days after received your payment
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, CCC, RoHS, UL

Mounting:

Ceiling Mount

Power Supply:

Electric

Application:

Cold Storage

Material:

Stainless Steel

Operating Voltage:

380/400 VAC

Frequency:

50/60hz

Color:

White

Packaging Details:

Carton box

Supply Ability:

5,000pcs per month

Highlight:

evaporator in refrigeration system

air cooler evaporator

Product Description

New Suspending Air Cooled Evaporator For Cold Room AT301C4

Specifications:

Wide range of cold quantity;Most of the installation have needle valve;Wiring board positive installation;Cabinet design

1.easy to open the crust

2.wide range of cold quantity;

3.Most of the installation have needle valve;

4.Wiring board positive installation;

5.Cabinet design

6.with a strong rope, be used for maintenance wet pan when fixing.

note: AT- mesotherm cooler

AK-low temp. cooler

Air Coolers & Freezers Unit Coolers Evaporator For Refrigeration Unit 0

Air Coolers & Freezers Unit Coolers Evaporator For Refrigeration Unit 1

AT/KA series for medium temperature:

	300mm						Fin Spacing	4.5mm
	Models	AT301C4	AT302C3	AT302C4	AT302C6	AT303C4	AT303C6	AT304C5	AT304C6
SC3 KW	Ta -18° R22	1.4	2	2.3	3	3.7	4.6	5.4	5.8
SC3 KW	Te -25° R404A	1.4	2	2.2	2.9	3.7	4.6	5.3	5.7
SC2 KW	Ta 0° R22	1.9	2.7	3.5	4.2	5.4	6.6	8.1	8.3
SC2 KW	Te -25° R22	2.1	3	3.5	4.5	5.4	6.8	8.1	8.6
SC4 KW	Ta -25° R22	1.1	1.6	1.8	2.3	3.2	3.6	4.2	4.5
SC4 KW	Te -31° R404A	1.1	1.6	1.7	2.3	3.2	3.6	4.1	4.4
	Tube Length m	26	32	43	65	63	95	97	117
	Surface ㎡	7.3	9.1	12.2	18.2	17.8	26.8	27.4	32.8
	Circuit Vol. dm³	2	2.6	3.4	5.1	5	7.5	7.7	9.2
	Fan Mot.No.	1	2	2	2	3	3	4	4
	Air Flow m³/h	1400	2800	2700	2500	4050	3750	5000	4800
	Air Throw m	4	6	6	5	7	6	8	8
	Fan Mot.Amper A	0.3	0.6	0.6	0.6	0.9	0.9	1.2	1.2
	Fan Mot.Power W	90	180	180	180	270	270	360	360
	Electric Defrost A	2.3 Y	3.6 Y	3.6 Y	7.3 Y	5.5 Y	10.9 Y	13.6 Y	13.6 Y
	Electric Defrost W	1500	2400	2400	4000	3600	6000	7500	7500
	In Tube Inch.	1/2	1/2	1/2	1/2	1/2	1/2	1/2	1/2
	Out Tube Inch	5/8	5/8	5/8	5/8	5/8	5/8	5/8	7/8
	Net Weight kg	20	31	33	36	49	55	62	65
	Drawing No.	①	②	②	②	③	③	④	④



	400mm						Fin Spacing	4.5mm
	Models	AT401C3	AT401C4	AT401C5	AT401C6	AT402C3	AT402C4	AT402C5	AT402C6
SC3 KW	Ta -18° R22	2	2.3	2.9	3.1	4	4.7	5.8	6.3
SC3 KW	Te -25° R404A	2	2.3	2.9	3.1	4.1	4.7	5.8	6.2
SC2 KW	Ta 0° R22	2.5	3.5	4.1	4.3	5.7	7.1	8.3	9.1
SC2 KW	Te -25° R22	3	3.5	4.2	4.7	6	7.1	8.4	9
SC4 KW	Ta -25° R22	1.6	1.8	2.2	2.4	3.2	3.6	4.5	4.9
SC4 KW	Te -31° R404A	1.6	1.7	2.2	2.4	3.2	3.6	4.5	4.8
	Tube Length m	26	35	43	52	52	69	86	104
	Surface ㎡	7.3	9.7	12.2	14.6	14.6	19.5	24.4	29.2
	Circuit Vol. dm³	2	2.7	3.4	4.1	4.1	5.4	6.8	8.2
	Fan Mot.No.	1	1	1	1	2	2	2	2
	Air Flow m³/h	3050	2910	2840	2780	6100	5820	5680	5560
	Air Throw m	8	8	7	6	10	9	8	8
	Fan Mot.Amper A	0.5	0.5	0.5	0.5	1	1	1	1
	Fan Mot.Power W	200	200	200	200	400	400	400	400
	Electric Defrost A	2.3 Y	2.3 Y	4.5 Y	4.5 Y	4.5 Y	4.5 Y	9.1 Y	9.1 Y
	Electric Defrost W	1500	1500	2500	2500	3000	3000	5000	5000
	In Tube Inch.	1/2	1/2	1/2	1/2	1/2	1/2	1/2	1/2
	Out Tube Inch	5/8	5/8	5/8	5/8	5/8	5/8	5/8	7/8
	Net Weight kg	31	33	35	36	49	52	55	58
	Drawing No.	⑤	⑤	⑤	⑤	⑥	⑥	⑥	⑥



	400mm						Fin Spacing	4.5mm
	Models	AT403C4	AT403C5	AT403C6	AT404C5	AT404C6	AT405C5	AT405C6
SC3 KW	Ta -18° R22	7.6	8.6	9.8	10.2	12.1	13.2	14.5
SC3 KW	Te -25° R404A	7.8	8.6	9.8	10	12	12.8	14.3
SC2 KW	Ta 0° R22	10.7	12.5	14	15.5	17.8	20.4	22.3
SC2 KW	Te -25° R22	11.1	12.8	14.4	15.5	18	20.5	22.1
SC4 KW	Ta -25° R22	6	6.7	7.7	8.3	9.4	10.5	11.1
SC4 KW	Te -31° R404A	6.1	6.7	7.7	8.2	9.3	10.3	10.9
	Tube Length m	104	130	156	158	190	211	253
	Surface ㎡	29.2	36.5	43.8	44.6	53.5	59.4	71.3
	Circuit Vol. dm³	8.2	10.2	12.3	12.5	15	16.6	20
	Fan Mot.No.	3	3	3	4	4	5	5
	Air Flow m³/h	8730	8520	8340	11000	10600	14000	13700
	Air Throw m	11	10	10	11	11	12	12
	Fan Mot.Amper A	1.5	1.5	1.5	2	2	2.5	2.5
	Fan Mot.Power W	600	600	600	800	800	1000	1000
	Electric Defrost A	6.8 Y	13.6 Y	13.6 Y	16.4 Y	16.4 Y	21.8 Y	21.8 Y
	Electric Defrost W	4500	7500	7500	9000	9000	12000	12000
	In Tube Inch.	1/2	5/8	5/8	5/8	7/8	5/8	7/8
	Out Tube Inch	7/8	7/8	7/8	7/8	1-1/8	7/8	1-1/8
	Net Weight kg	72	77	82	97	104	121	129
	Drawing No.	⑦	⑦	⑦	⑧	⑧	⑨	⑨




	500mm						Fin Spacing	4.5mm
	Models	AT501C6	AT501C8	AT502C5	AT502C6	AT502C8	AT503C6	AT503C8
SC3 KW	Ta -18° R22	6.4	7.4	10.6	12.6	14.4	17.2	19.3
SC3 KW	Te -25° R404A	6.3	7.3	10.5	12.7	14.3	17.1	19
SC2 KW	Ta 0° R22	9.5	10.9	16	18.1	20.6	26.9	30.5
SC2 KW	Te -25° R22	9.5	11	16.1	18.5	21.1	26.6	30.2
SC4 KW	Ta -25° R22	4.9	5.8	8.2	9.9	11.3	13.1	14.7
SC4 KW	Te -31° R404A	4.8	5.7	8	9.9	11.2	13	14.4
	Tube Length m	108	144	162	194	259	317	422
	Surface ㎡	30.4	40.5	45.6	54.7	73	89.2	118.9
	Circuit Vol. dm³	8.5	11.3	12.8	15.3	20.4	25	33.3
	Fan Mot.No.	1	1	2	2	2	3	3
	Air Flow m³/h	5600	5350	11200	10900	10200	16800	15900
	Air Throw m	13	12	14	14	13	15	14
	Fan Mot.Amper A	1.4	1.4	2.8	2.8	2.8	4.2	4.2
	Fan Mot.Power W	580	580	1160	1160	1160	1740	1740
	Electric Defrost A	7.3 Y	7.3 Y	13.6 Y	13.6 Y	13.6 Y	21.8 Y	21.8 Y
	Electric Defrost W	4800	4800	9000	9000	9000	14400	14400
	In Tube Inch.	5/8	5/8	5/8	7/8	7/8	7/8	7/8
	Out Tube Inch	7/8	1-1/8	1-1/8	1-3/8	1-3/8	1-3/8	1-3/8
	Net Weight kg	102	110	150	156	168	225	246
	Drawing No.	⑩	⑩	⑪	⑪	⑪	⑫	⑫

Air Coolers & Freezers Unit Coolers Evaporator For Refrigeration Unit 2

Air Coolers & Freezers Unit Coolers Evaporator For Refrigeration Unit 3
