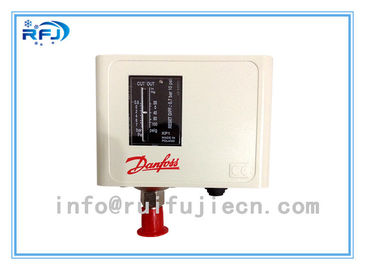

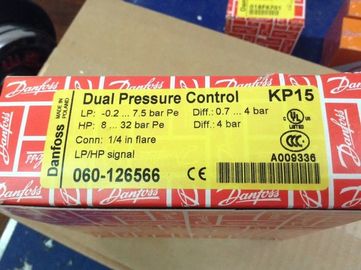

pressure controls KP series for vacuum , 0.02~42Mpa range KP15 060-126566 R134A/R22/R407C

Name: pressure controls KP series for vacuum , 0.02~42Mpa range KP15 060-126566 R134A/R22/R407C
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: KP15 060-126566
Price: Negotiable USD
Availability: InStock

Brand Name:	original
Model Number:	KP15 060-126566
MOQ:	1pcs
Price:	discussed
Delivery Time:	7-10 working days after received your payment
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China/Europ

Certification:

CE/ UL

Type:

Pressure Control

Application:

Refrigeration Parts

Refrigerant:

R134A/R22/R407C

Export Markets:

Global

Packing:

Carton Box

Colour:

White

Packaging Details:

Carton box

Supply Ability:

5,000pcs per month

Highlight:

refrigeration and air conditioning tools and equipment

danfoss expansion valve

Product Description

pressure controls KP series KP1 KP5 KP15 060-126566

Specifications:

Pressure controls are pressure-activated switches,with a basic function to make or break an electrical circuit which in tur controls a solenoid coil, a contactor or some other functioning part of the system.
The set point at which a control closes a contact and makes a circuit is called the cut-in point.
The point at which the control opens the switch and breaks the circuit is called the cut-out point.
The difference between the cut-in and cut-out point is known as the differential.

* Used in a neutral or corrosive gas and liquid medium

* Adjustment range is 0.02~42Mpa

* In high, low and dual pressure

Technical data

Can be used for vacuum

The control system is a miniature design

Working viscosity: Below 1× 10-3m2/s

Switch element: Sensitive switch

Environment temperature: - 25-55° C

Medium temperature: - 25-80° C

Code	Type
KP
060-110191	Pressure control KP 1
060-114166	Pressure control KP 1
060-115266	Pressure control KP 1A
060-111266	Pressure control KP 1
060-111166
060-111066
060-110966
060-112066	Pressure control KP 2
060-112366	Pressure control KP 2
060-117191	Pressure control KP 5
060-117366
060-117766
060-117866
060-117966
060-118066
060-519066	Pressure control KP 6
060-519166	Pressure control KP 6
060-124166	Pressure control KP 15
060-124366
060-124566
060-125466
060-115466
060-126166
060-126466
060-126566
060-128466
060-129966
060-122066
060-001066
060-116066	Pressure control KP 1A
060-116166
060-116266
060-115366	Pressure control KP 5A
060-123066
060-123166
060-129366	Pressure control KP 15A
060-129466
060-129566
060-129666
060-128366
060-119066	Pressure control KP 7W
060-120366	Pressure control KP 7W
060-119166	Pressure control KP 7B
060-119266	Pressure control KP 7S
060-120066	Pressure control KP 7BS
060-127566	Pressure control KP 17W
060-127666
060-126766
060-126866	Pressure control KP 17B
060-127466	Pressure control KP 17B
060-120566	Pressure control KP 7 ABS
060-005766	Welded connections
060-007866	Capillary
060-008266	Capillary
060-014166	Adapter
060-033066	Spare parts
060-035066	Spare parts

pressure controls KP series for vacuum , 0.02~42Mpa range KP15 060-126566 R134A/R22/R407C 0
