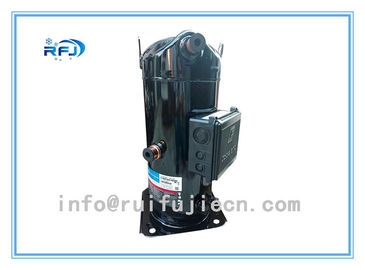

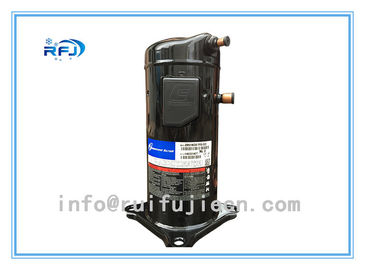

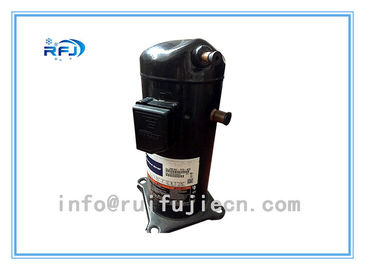

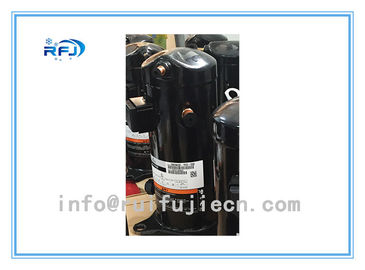

Stationary 3HP Refrigeration Scroll Compressor Copeland ZB21KQE-TFD-558 For Air Condition

Name: Stationary 3HP Refrigeration Scroll Compressor Copeland ZB21KQE-TFD-558 For Air Condition
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: ZB21KQE-TFD-558
Price: Negotiable USD
Availability: InStock

Brand Name:	Copeland
Model Number:	ZB21KQE-TFD-558
MOQ:	1pcs
Price:	discussed
Delivery Time:	7-10 working days after receiving payment
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ROHS, UL

Piston Type:

Scroll

Power Source:

AC Power

Configuration:

Stationary

Drive Mode:

Electric

Horse Power:

3HP

Temperature:

Med Temperature

Sightglass:

Compressor With Sightglass

Color:

Black

Net Weight:

27KG

Gross Weight:

30KG

L*W*H:

243*244*412mm

Packaging Details:

Wooden case or 16 units in one pallet

Supply Ability:

5,000pcs per month

Highlight:

copeland a c compressor

commercial refrigeration compressor

Product Description

3HP Copeland scroll Compressor ZB21KQE-TFD-558

Specifications:

Copeland scroll compresor,model:ZB21KQE-TFD-558

Description:

Refrigerant: R404/R22 50Hz

Copeland Scroll Digital® Technology for simple, step-less capacity modulation.

ZB Series Emerson Copeland Scroll Compressor For Air-conditioning
Model	ZB66KQ ZB66KQE	ZB76KQ ZB76KQE	ZB88KQ	ZB95KQ	ZB114KQ
Motor type	TFD
Nominal power(HP)	9	10	12	13	15
Displacement(m³/h)	25.7	28.8	33.2	36.4	43.4
Starting current(LRA)(Amp.)
TFD	100~111	110~118	110~118	140	174
PFJ
Rated Load Current(RLA)(Amp.)
TFD	17.3	19.2	22.1	22.1	27.1
PFJ
Max. operating current (MCC)(Amp.)
TFD	24.2	26.9	31	31	38
PFJ
Crankcase heater power(W)	90
Adapter outer diameter(in.)
Discharge Size	7/8	7/8	7/8	7/8	7/8
Suction Size	1 3/8	1 3/8	1 3/8	1 3/8	1 3/8
Dimenson(mm.)
Length(L)
Width(W)	284	284	284	285	285
Height(H)	546	546	546	552	553
Sole angles (aperture)	190X190 (8.5)
Oil Charge(L)	3.25	3.25	3.25	3.3	3.3
Weight(Kg)
Net Weight	59	62	62	62	63
Gross Weight	62	65	65	65	66

Model NO.	Cindensate Temperature	The Evaporation Temperature ° C (R404/50HZ)
Model NO.	Cindensate Temperature	-25	-20	-15	-10	-5	0	5
ZB15KQE	40	1870	2430	3000	3700	4450	5350	6350
ZB19KQE	40	2490	3050	3750	4550	5450	6500	7700
ZB21KQE	40	3000	3700	4550	5000	6600	7900	9350
ZB26KQE	40	3500	4300	5250	6350	7650	9100	10800
ZB29KQE	40	4070	5040	6160	7460	8960	10680	12650
ZB38KQE	40	5100	6250	7700	9300	11200	13350	15800
ZB45KQE	40	6000	7400	9050	10950	13150	15700	18600
ZB48KQE	40	6579	8150	9969	12074	14500	17287	20471
ZB58KQE	40	7050	9250	11700	14400	17500	21000	24900
ZB66KQE	40	8900	11100	13500	16400	19600	23400	27600
ZB76KQE	40	10900	13300	16100	19400	23300	27800	33000

ZB Series Emerson Copeland Scroll Compressor For Air-conditioning
Model	ZB15KQ ZB15KQE	ZB19KQ ZB19KQE	ZB21KQ ZB21KQE	ZB26KQ ZB26KQE	ZB29KQ ZB29KQE	ZB38KQ ZB38KQE	ZB45KQ ZB45KQE	ZB48KQ ZB48KQE
Motor type	TFD
	PFJ	PFJ	PFJ	PFJ	PFJ
Nominal power(HP)	2	2.5	3	3.5	4	5	6	7

Displacement(m³/h)	5.9	6.8	8.6	9.9	11.4	14.5	17.2	18.8

Starting current(LRA) (Amp.)
TFD	24.5~26	30~32	36~40	41~46	50	58.6~65.5	67~74	101
PFJ	53~58	56~61	75~82	89~97	113

Rated Load Current(RLA) (Amp.)
TFD	4.30	4.30	5.70	7.10	7.90	8.90	11.50	12.1
PFJ	11.4	12.9	16.4	18.9	19.3

Max. operating current (MCC) (Amp.)
TFD	6.0	6.0	8.0	10.0	11.0	12.5	16.1	17.0
PFJ	16	18	23	24	27
Operating capacitance (single-phase)	40μF/370V	45μF/370V	50μF/370V	60μF/370V	60μF/370V
Crankcase heater power(W)	70

Adapter outer diameter(in.)
Discharge Size	1/2	1/2	1/2	1/2	1/2	1/2	1/2	3/4
Suction Size	3/4	3/4	3/4	3/4	7/8	7/8	7/8	7/8

Dimenson(mm.)
Length(L)	242	242	243	243	242	242	242	242
Width(W)	242	242	244	244	242	242	242	242
Height(H)	383	389	412	425	430	457	457	457
Sole angles (aperture)	190X190 (8.5)

Oil Charge(L)	1.18	1.45	1.45	1.45	1.36	1.89	1.89	1.80

Weight(Kg)
Net Weight	23	25	27	28	33	38	40	40
Gross Weight	26	29	30	31	37	41	44	44
