| Brand Name: | Brilliant |
| Model Number: | YBF Series |
| MOQ: | 1pcs |
| Price: | discussed |
| Delivery Time: | 7-10 working days after receiving payment |
| Payment Terms: | L/C, T/T, Western Union |

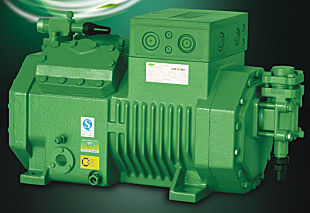

Brilliant Piston Semi Hermetic Refrigeration Compressor for air conditioner / cold room
Specifications:
Refrigerant: R22, R404
Certificate: CCC, EPRE
Name model:
Y - Beijing Bo Laite refrigeration equipment limited company
BF- Half closed freon refrigeration compressor
4- Said compressor cylinder number
F- Said compressor bore X stroke
C- Indicates the Brilliant compressor octagonal machine series
3.2- Said motor rated power (HP)
Z- Said in low temperature, high temperature machine G-, DS- low temperature bipolar
R- Refrigeration oil type: E- ester oil (R404A, R134A, R407c) R- mineral oil ( R22, R502 )
We can supply more models as follow:
|
Model |
Power / hp |
Displacement |
KW/HP |
|
YBF2CC-3.2 |
2×Φ55×39.3mm |
16.24m³/h |
2.2KW/3HP |
|
YBF2CC-4.2 |
2×Φ55×39.3mm |
16.24m³/h |
2.9KW/4HP |
|
YBF4FC-3.2ZR |
4×Φ41×39.3mm |
18.05m³/h |
2.2KW/3HP |
|
YBF4EC-4.2ZR |
4×Φ46×39.3mm |
22.72m³/h |
3KW/4HP |
|
YBF4DC-5.2ZR |
4×Φ50×39.3mm |
26.84m³/h |
3.7KW/5HP |
|
YBF4CC-6.2ZR |
4×Φ55×39.3mm |
32.48m³/h |
4.4KW/6HP |
|
YBF4FC-5.2GR |
4×Φ41×39.3mm |
18.05m³/h |
3.7KW/5HP |
|
YBF4EC-6.2GR |
4×Φ46×39.3mm |
22.72m³/h |
4.4KW/6HP |
|
YBF4DC-7.2GR |
4×Φ50×39.3mm |
26.84m³/h |
5.1KW/7HP |
|
YBF4CC-9.2GR |
4×Φ55×39.3mm |
32.48m³/h |
6.6KW/9HP |
|
YBF4VCS-6.2ZR |
4×Φ55×42mm |
34.73m³/h |
4.4KW/6HP |
|
YBF4TCS-8.2ZR |
4×Φ60×42mm |
41.33m³/h |
5.5KW/8HP |
|
YBF4PCS-10.2ZR |
4×Φ65×42mm |
48.50m³/h |
7.5KW/10HP |
|
YBF4NCS-12.2ZR |
4×Φ70×42mm |
56.25m³/h |
8.8KW/12HP |
|
YBF4VCS-10.2GR |
4×Φ55×42mm |
34.73m³/h |
7.5KW/10HP |
|
YBF4TCS-12.2GR |
4×Φ60×42mm |
41.33m³/h |
8.8KW/12HP |
|
YBF4PCS-15.2GR |
4×Φ65×42mm |
48.50m³/h |
10.5KW/15HP |
|
YBF4NCS-20.2GR |
4×Φ70×42mm |
56.25m³/h |
15KW/20HP |
|
YBF4G-20.2ZR |
4×Φ75×55mm |
84.5m³/h |
15KW/20HP |
|
YBF4H-15.2ZR |
4×Φ70×55mm |
73.6m³/h |
10.5KW/15HP |
|
YBF4G-30.2GR |
4×Φ75×55mm |
84.5m³/h |
22KW/30HP |
|
YBF4H-25.2GR |
4×Φ70×55mm |
73.6m³/h |
18.5KW/25HP |
|
YBF6H-25.2ZR |
6×Φ70×55mm |
110.5m³/h |
18.5KW/25HP |
|
YBF6G-30.2ZR |
6×Φ75×55mm |
126.8m³/h |
22KW/30HP |
|
YBF6F-40.2ZR |
6×Φ82×55mm |
151.6m³/h |
30KW/40HP |
|
YBF6H-35.2GR |
6×Φ70×55mm |
110.5m³/h |
26KW/35HP |
|
YBF6G-40.2GR |
6×Φ75×55mm |
126.8m³/h |
30KW/40HP |
|
YBF6F-50.2GR |
6×Φ82×55mm |
151.6m³/h |
37KW/50HP |
|
|
