| Brand Name: | copeland |
| Model Number: | ZB95KQE-TFD |
| MOQ: | 1 |
| Price: | discussed |
| Delivery Time: | 1-5DAYS |
| Payment Terms: | T/T, D/A |
1. Product feature and applicatio
Refrigerant Freq (Hz) Phase Voltage Application
R-404A HFC 60 3 460 Medium Temperature
R-507 HFC 60 3 460
R-507 HFC 50 3 380/420
2. Production details

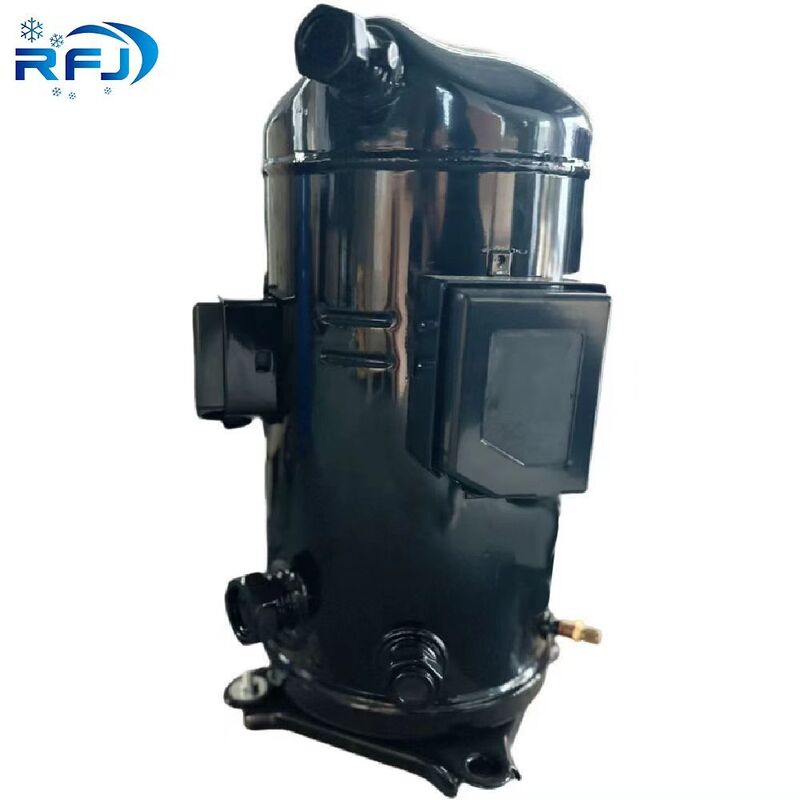

| Specification | Copeland compressor ZB95KQE-TFD-551 |
| Capacity(Btu/hr) | 77900 |
| Power(w) | 11650 |
| Current(A) | 20.85 |
| E.E.R | 6.70 |
| Mass flow(lbs/wh) | 1645 |
| Weight(lbs) | 143 |
| Refrigerant | R404A |
Model of ZB95KQE-TFD-551 descrition:
1. Product introduction
1)Working R404 refrigerant.
2)Widely used in middle temperature refrigeration field.
3)380v/3ph/50hz
4)Horse power:13HP
5)Screw connection,with charging valve.
2. Product parameter(Specification)
R22.50HZ
| Model NO | Cindensate Temperature | The evaporation temperature ℃(R22/50HZ) | Sets/Pallet | |||||
| -12 | -10 | -5 | 0 | 5 | 10 | |||
| ZB15KQ-PFJ | 40 | 3300 | 3550 | 4350 | 5200 | 6250 | 7400 | 16 |
| ZB21KQ-PFJ | 40 | 4650 | 5050 | 6200 | 7450 | 8850 | 10500 | 16 |
| ZB26KQ-PFJ | 40 | 5100 | 5500 | 6800 | 8200 | 9850 | 11700 | 16 |
| ZB15KQ-TFD | 40 | 3300 | 3550 | 4350 | 5200 | 6250 | 7400 | 16 |
| ZB21KQ-TFD | 40 | 4650 | 5050 | 6200 | 7450 | 8850 | 10500 | 16 |
| ZB26KQ-TFD | 40 | 5100 | 5500 | 6800 | 8200 | 9850 | 14070 | 16 |
| ZB29KQ-TFD | 40 | 6230 | 6790 | 8290 | 9970 | 11800 | 14400 | 16 |
| ZB38KQ-TFD | 40 | 7300 | 8000 | 9950 | 12200 | 14650 | 17300 | 16 |
| ZB45KQ-TFD | 40 | 9400 | 10200 | 12400 | 14900 | 17800 | 21000 | 16 |
| ZB48KQ-TFD | 40 | 10390 | 11285 | 13700 | 16436 | 19574 | 23199 | 16 |
| ZB50KQ-TFD | 40 | 10600 | 11660 | 14350 | 17400 | 20800 | 24700 | 12 |
| ZB58KQ-TFD | 40 | 11800 | 12950 | 16100 | 19600 | 19574 | 28000 | 12 |
| ZB66KQ-TFD | 40 | 13950 | 15100 | 18400 | 22200 | 26500 | 31500 | 12 |
| ZB76KQ-TFD | 40 | 16400 | 17800 | 21700 | 28500 | 30500 | 35500 | 12 |
| ZB88KQ-TFD | 40 | 18800 | 20400 | 24900 | 30000 | 36000 | 42000 | 12 |
| ZB95KQ-TFD | 40 | 19500 | 21400 | 26500 | 32000 | 38200 | 45200 | 12 |
| ZB114KQ-TFD | 40 | 23200 | 25500 | 31700 | 38500 | 41600 | 54500 | 12 |
