| Model Number: | 2fes-2y(2FC-2.2Y) |
| MOQ: | 1 piece |
| Price: | US$712-1000/PC |
| Delivery Time: | 5-7 Days |
| Payment Terms: | T/T, Western Union, MoneyGram |

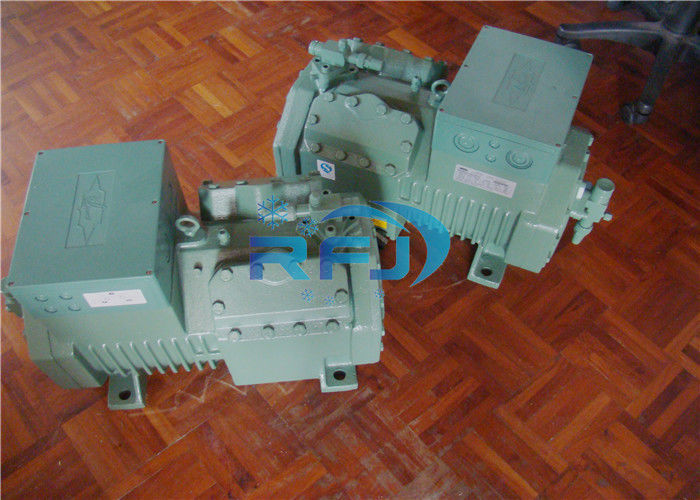

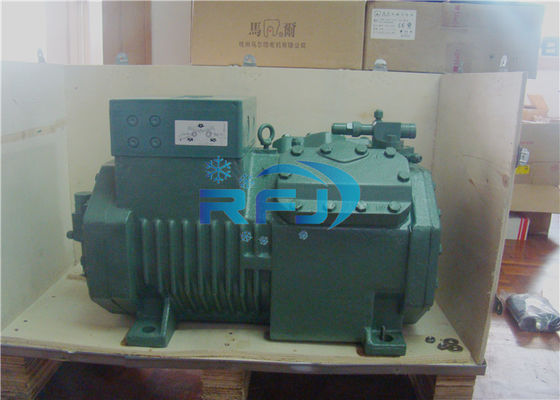

Semi-hermetic Screw Compressor all models
1,CSH/CSW Series with R-22,R-134a,R407C
2,Low price,wide use,strong capacity
Semi-hermetic Reciprocating compressor
Description:
1. Semi-hermetic screw compressor, specially used for low temperature application and big capacity demand.
2.With development of refrigeration market, more and more big freeze room are required, screw compressor rack is perfectly applicable for it.
3.The professional design is made to protect inversion, overheat, overload, exhaust temperature, low oil level, oil flow.
4.It is widely used in different field, like supermarket, food industry, chemical industry, hotel, restaurant, and even medical service, etc
1. Product parameter(Specification)
| Model | Displ. @1450r/min | Cylinders | Oil charge | Weight | Discharge line | Suction line | ||
| m³/h | dm³ | Kg | mm | in | mm | in | ||
| 2KES-05Y | 4.06 | 2 | 1 | 43 | 12 | 1/2" | 16 | 5/8" |
| 2JES-07Y | 5.21 | 2 | 1 | 43 | 12 | 1/2" | 16 | 5/8" |
| 2HES-1Y | 6.51 | 2 | 1 | 44 | 12 | 1/2" | 16 | 5/8" |
| 2HES-2Y | 6.51 | 2 | 1 | 45 | 12 | 1/2" | 16 | 5/8" |
| 2GES-2Y | 7.58 | 2 | 1 | 45 | 12 | 1/2" | 16 | 5/8" |
| 2FES-2Y | 9.54 | 2 | 1 | 45 | 12 | 1/2" | 16 | 5/8" |
| 2FES-3Y | 9.54 | 2 | 1 | 47 | 12 | 1/2" | 16 | 5/8" |
3.Production details
| SI | IP | |
| Displacement(1450 RPM 50 HZ) | 9.54 m³/h | 336.9 CFH |
| Displacement(1750 RPM 60 HZ) | 11.51 m³/h | 406.5 CFH |
| No.of cylinder * bore * stroke | 2*46mm*33mm | 2*1.81inch*1.3inch |
| Weight | 45 kg | 99 lb |
| Max,pressure(LP/HP) | 19/32 bar | 275/464 psi |
| Connection suction line | 16mm-5/8” | 16mm-5/8” |
| Connection discharge line | 12mm-1/2” | 12mm-1/2” |
| Motor version | 2 | 2 |
| Starting current(Rotor locked) | 22.5 A | 24.0 A |
| Motor voltage(more on request) | 380-420V Y-3-50 HZ | 440-480V Y-3-60 HZ UL |
| Max operating current | 5.3 A | 5.3 A |
|
|
| Model Number: | 2fes-2y(2FC-2.2Y) |
| MOQ: | 1 piece |
| Price: | US$712-1000/PC |

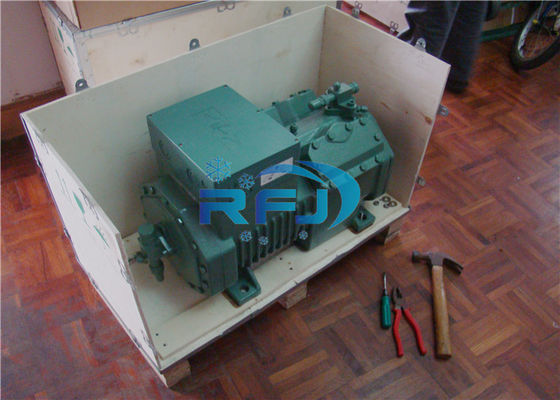

| Packaging Details: | Standard Wooden Package |
| Payment Terms: | T/T, Western Union, MoneyGram |
Semi-hermetic Screw Compressor all models
1,CSH/CSW Series with R-22,R-134a,R407C
2,Low price,wide use,strong capacity
Semi-hermetic Reciprocating compressor
Description:
1. Semi-hermetic screw compressor, specially used for low temperature application and big capacity demand.
2.With development of refrigeration market, more and more big freeze room are required, screw compressor rack is perfectly applicable for it.
3.The professional design is made to protect inversion, overheat, overload, exhaust temperature, low oil level, oil flow.
4.It is widely used in different field, like supermarket, food industry, chemical industry, hotel, restaurant, and even medical service, etc
1. Product parameter(Specification)
| Model | Displ. @1450r/min | Cylinders | Oil charge | Weight | Discharge line | Suction line | ||
| m³/h | dm³ | Kg | mm | in | mm | in | ||
| 2KES-05Y | 4.06 | 2 | 1 | 43 | 12 | 1/2" | 16 | 5/8" |
| 2JES-07Y | 5.21 | 2 | 1 | 43 | 12 | 1/2" | 16 | 5/8" |
| 2HES-1Y | 6.51 | 2 | 1 | 44 | 12 | 1/2" | 16 | 5/8" |
| 2HES-2Y | 6.51 | 2 | 1 | 45 | 12 | 1/2" | 16 | 5/8" |
| 2GES-2Y | 7.58 | 2 | 1 | 45 | 12 | 1/2" | 16 | 5/8" |
| 2FES-2Y | 9.54 | 2 | 1 | 45 | 12 | 1/2" | 16 | 5/8" |
| 2FES-3Y | 9.54 | 2 | 1 | 47 | 12 | 1/2" | 16 | 5/8" |
3.Production details
| SI | IP | |
| Displacement(1450 RPM 50 HZ) | 9.54 m³/h | 336.9 CFH |
| Displacement(1750 RPM 60 HZ) | 11.51 m³/h | 406.5 CFH |
| No.of cylinder * bore * stroke | 2*46mm*33mm | 2*1.81inch*1.3inch |
| Weight | 45 kg | 99 lb |
| Max,pressure(LP/HP) | 19/32 bar | 275/464 psi |
| Connection suction line | 16mm-5/8” | 16mm-5/8” |
| Connection discharge line | 12mm-1/2” | 12mm-1/2” |
| Motor version | 2 | 2 |
| Starting current(Rotor locked) | 22.5 A | 24.0 A |
| Motor voltage(more on request) | 380-420V Y-3-50 HZ | 440-480V Y-3-60 HZ UL |
| Max operating current | 5.3 A | 5.3 A |
