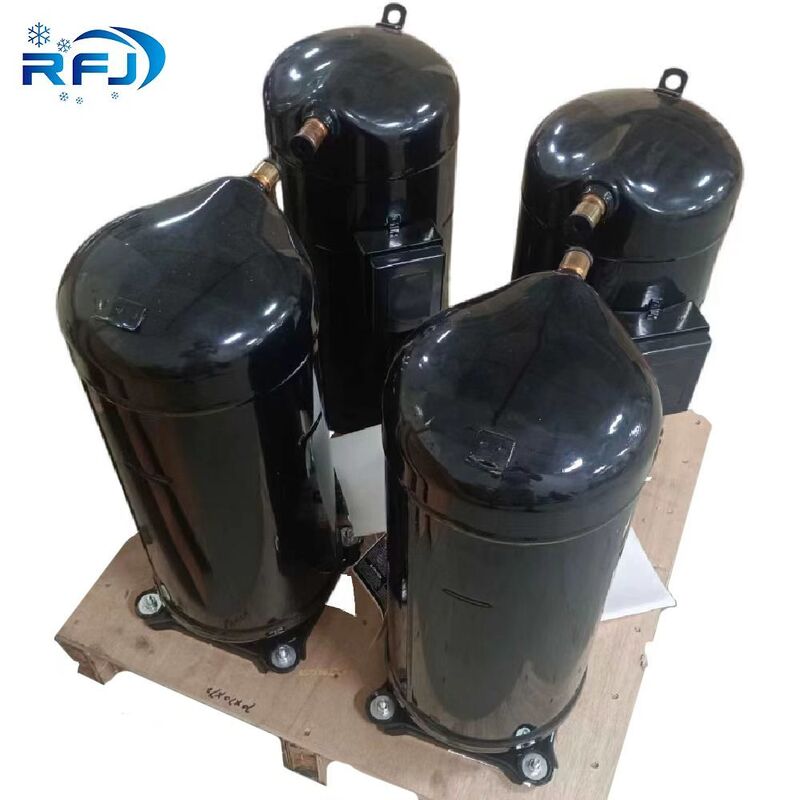

R-410A Copeland Refrigeration Compressors ZP61KCE-TFD-522

name

R-410A Copeland Refrigeration Compressors ZP61KCE-TFD-522

Brand Name:	Copeland
Model Number:	ZP61KCE-TFD-522
MOQ:	1 piece
Price:	discussed
Delivery Time:	7-10 working days after receiving payment
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE

Power Supply:

380-420V/3PH/50Hz

LRC:

64A

MOC:

11.8A

Maximum High Pressure:

43bar

Maximum Standstill Pressure:

28.0bar

Maximum Lowside Temperature:

50°C

Packaging Details:

Wooden package

Supply Ability:

1000000 pieces/ year

Highlight:

R-410A Refrigeration Scroll Compressor

,

ZP61KCE-TFD-522

Product Description

New Copeland Compressor ZP61KCE-TFD-522 380V R-410A

Technical data

Displacement [m³/h]: 10,1

Sound power [dBA]: 71

Sound pressure level [dB]: 60

Net Weight [kg]: 40,3

Gross Weight [kg]: 46

Oil charge [dm³]: 1,7

Maximum high pressure [bar]: 43

Maximum standstill pressure [bar]: 28,0

Maximum lowside temperature [°C]: 50

PED category: 1

Electrical data

Power supply [V/~/Hz]: 380-420V/3/50Hz

Locked rotor current [A]: 64,0

Max. operating current [A]: 11,8

Winding resistance [Ω]: 2,8

Connections

inches

Suction connection with supplied sleeve: 7/8"

Discharge connection with supplied sleeve: 1/2"

Product name	Refrigeration Compressor
Application	HVAC
Compressor model	ZP61KCE-TFD-522
MOQ	1 Set
Refrigerant	R410A

FAQ

1,What is your MOQ?

Our MOQ is usually 1 set.

2,Shipping methods and lead time

By Express: 5-7 working days to your door (DHL, UPS, TNT, FedEx...).

By Air: 7-10 working days to your airport.

By Sea: Pls advise your port of destination, the exact days will be confirmed by our forwarders, and the following lead time is for your reference.

Europe and America (25 - 35 days), Asia (3-7 days), Australia ( 16-23 days).

3,What is your payment terms?

TT/WESTERN UNION

4, What are the main products?

Semi-hermetic compressor

Hermetic Compressor

Refrigeration Compressor Unit

5, Packaging & Shiping

Packing: wooden pallet, wooden case or with outer carton, or as per customers' specific requirements.
