| Brand Name: | Copeland |
| Model Number: | ZB76KQE-TFD-551 |
| MOQ: | 1 piece |
| Price: | discussed |
| Delivery Time: | 7-10 working days after receiving payment |
| Payment Terms: | T/T, Western Union |

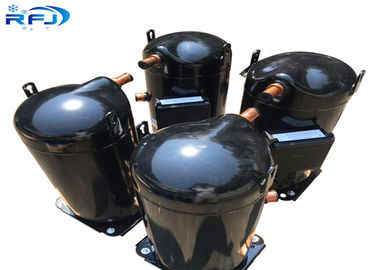

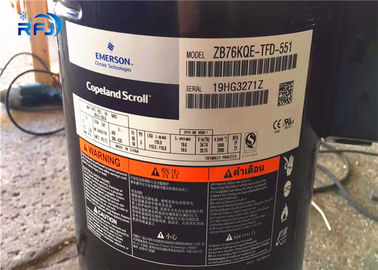

Copeland Compressor ZB76KQE-TFD-551 for 380V R404A
Product description:
1. Copeland scroll compressor model: 2HP-30HP
2. Copeland scroll compressor has high processing precision requirements, but has many advantages, small size, light weight, high efficiency, low vibration and high reliability.
3. Copeland scroll compressors will largely replace traditional piston compressors, which have been widely used in developed countries.
Features:
1. The Copeland (ZB series) compressor adopts a double-flex design to ensure the seal between the scrolls. The ZB series Copeland compressor allows the scroll to be separated radially and axially, and debris or liquid can pass through the scroll without damaging the compressor.
2. ZB series Copeland compressors have higher life and reliability, better liquid tolerance and better impurity tolerance.
3. Copeland compressor (ZB series) has a lower noise and vibration level smooth sound spectrum and soft sound quality.
4. The compression chamber of ZB series Copeland compressor is always symmetrically distributed, with low unbalanced stress and no vibration absorbing device.
5. Copeland ZB series compressor adopts unloading start technology. After the stop, the Copeland compression components separate the pressure balance inside the compressor from each other without additional starting device.
| Model NO. | Cindensate Temperature | The Evaporation Temperature ° C (R22/50HZ) | |||||
| -12 | -10 | -5 | 0 | 5 | 10 | ||
| ZB21KQ | 40 | 4650 | 5050 | 6200 | 7450 | 8850 | 10500 |
| ZB26KQ | 40 | 5100 | 5500 | 6800 | 8200 | 9850 | 11700 |
| ZB29KQ | 40 | 6230 | 6790 | 8290 | 9970 | 11800 | 14070 |
| ZB38KQ | 40 | 7300 | 8000 | 9950 | 12200 | 14650 | 17300 |
| ZB45KQ | 40 | 9400 | 10200 | 12400 | 14900 | 17800 | 21000 |
| ZB48KQ | 40 | 10390 | 11285 | 13700 | 16436 | 19574 | 23199 |
| ZB58KQ | 40 | 11800 | 12950 | 16100 | 19600 | 19574 | 28000 |
| ZB66KQ | 40 | 13950 | 15100 | 18400 | 22200 | 26500 | 31500 |
| ZB76KQ | 40 | 16400 | 17800 | 21700 | 28500 | 30500 | 35500 |
| ZB88KQ | 40 | 18800 | 20400 | 24900 | 30000 | 36000 | 42000 |
| ZB95KQ | 40 | 19500 | 21400 | 26500 | 32000 | 38200 | 45200 |
| ZB114KQ | 40 | 23200 | 25500 | 31700 | 38500 | 41600 | 54500 |
| Model NO. | Cindensate Temperature | The Evaporation Temperature ° C (R404/50HZ) | ||||||
| -25 | -20 | -15 | -10 | -5 | 0 | 5 | ||
| ZB19KQE | 40 | 2490 | 3050 | 3750 | 4550 | 5450 | 6500 | 7700 |
| ZB21KQE | 40 | 3000 | 3700 | 4550 | 5000 | 6600 | 7900 | 9350 |
| ZB26KQE | 40 | 3500 | 4300 | 5250 | 6350 | 7650 | 9100 | 10800 |
| ZB29KQE | 40 | 4070 | 5040 | 6160 | 7460 | 8960 | 10680 | 12650 |
| ZB38KQE | 40 | 5100 | 6250 | 7700 | 9300 | 11200 | 13350 | 15800 |
| ZB45KQE | 40 | 6000 | 7400 | 9050 | 10950 | 13150 | 15700 | 18600 |
| ZB48KQE | 40 | 6579 | 8150 | 9969 | 12074 | 14500 | 17287 | 20471 |
| ZB58KQE | 40 | 7050 | 9250 | 11700 | 14400 | 17500 | 21000 | 24900 |
| ZB66KQE | 40 | 8900 | 11100 | 13500 | 16400 | 19600 | 23400 | 27600 |
Video
Video
Video
Video
|
|
| Brand Name: | Copeland |
| Model Number: | ZB76KQE-TFD-551 |
| MOQ: | 1 piece |
| Price: | discussed |
| Packaging Details: | Wooden case or 16 units in one pallet |
| Payment Terms: | T/T, Western Union |
Copeland Compressor ZB76KQE-TFD-551 for 380V R404A
Product description:
1. Copeland scroll compressor model: 2HP-30HP
2. Copeland scroll compressor has high processing precision requirements, but has many advantages, small size, light weight, high efficiency, low vibration and high reliability.
3. Copeland scroll compressors will largely replace traditional piston compressors, which have been widely used in developed countries.
Features:
1. The Copeland (ZB series) compressor adopts a double-flex design to ensure the seal between the scrolls. The ZB series Copeland compressor allows the scroll to be separated radially and axially, and debris or liquid can pass through the scroll without damaging the compressor.
2. ZB series Copeland compressors have higher life and reliability, better liquid tolerance and better impurity tolerance.
3. Copeland compressor (ZB series) has a lower noise and vibration level smooth sound spectrum and soft sound quality.
4. The compression chamber of ZB series Copeland compressor is always symmetrically distributed, with low unbalanced stress and no vibration absorbing device.
5. Copeland ZB series compressor adopts unloading start technology. After the stop, the Copeland compression components separate the pressure balance inside the compressor from each other without additional starting device.
| Model NO. | Cindensate Temperature | The Evaporation Temperature ° C (R22/50HZ) | |||||
| -12 | -10 | -5 | 0 | 5 | 10 | ||
| ZB21KQ | 40 | 4650 | 5050 | 6200 | 7450 | 8850 | 10500 |
| ZB26KQ | 40 | 5100 | 5500 | 6800 | 8200 | 9850 | 11700 |
| ZB29KQ | 40 | 6230 | 6790 | 8290 | 9970 | 11800 | 14070 |
| ZB38KQ | 40 | 7300 | 8000 | 9950 | 12200 | 14650 | 17300 |
| ZB45KQ | 40 | 9400 | 10200 | 12400 | 14900 | 17800 | 21000 |
| ZB48KQ | 40 | 10390 | 11285 | 13700 | 16436 | 19574 | 23199 |
| ZB58KQ | 40 | 11800 | 12950 | 16100 | 19600 | 19574 | 28000 |
| ZB66KQ | 40 | 13950 | 15100 | 18400 | 22200 | 26500 | 31500 |
| ZB76KQ | 40 | 16400 | 17800 | 21700 | 28500 | 30500 | 35500 |
| ZB88KQ | 40 | 18800 | 20400 | 24900 | 30000 | 36000 | 42000 |
| ZB95KQ | 40 | 19500 | 21400 | 26500 | 32000 | 38200 | 45200 |
| ZB114KQ | 40 | 23200 | 25500 | 31700 | 38500 | 41600 | 54500 |
| Model NO. | Cindensate Temperature | The Evaporation Temperature ° C (R404/50HZ) | ||||||
| -25 | -20 | -15 | -10 | -5 | 0 | 5 | ||
| ZB19KQE | 40 | 2490 | 3050 | 3750 | 4550 | 5450 | 6500 | 7700 |
| ZB21KQE | 40 | 3000 | 3700 | 4550 | 5000 | 6600 | 7900 | 9350 |
| ZB26KQE | 40 | 3500 | 4300 | 5250 | 6350 | 7650 | 9100 | 10800 |
| ZB29KQE | 40 | 4070 | 5040 | 6160 | 7460 | 8960 | 10680 | 12650 |
| ZB38KQE | 40 | 5100 | 6250 | 7700 | 9300 | 11200 | 13350 | 15800 |
| ZB45KQE | 40 | 6000 | 7400 | 9050 | 10950 | 13150 | 15700 | 18600 |
| ZB48KQE | 40 | 6579 | 8150 | 9969 | 12074 | 14500 | 17287 | 20471 |
| ZB58KQE | 40 | 7050 | 9250 | 11700 | 14400 | 17500 | 21000 | 24900 |
| ZB66KQE | 40 | 8900 | 11100 | 13500 | 16400 | 19600 | 23400 | 27600 |
