LFP-30X-EWL 3HP Semi Hermetic Refrigeration Compressor

Name: LFP-30X-EWL 3HP Semi Hermetic Refrigeration Compressor
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: LFP-30X-EWL
Price: Negotiable USD
Availability: InStock

Brand Name:	Copeland
Model Number:	LFP-30X-EWL
MOQ:	1 piece
Price:	Discussed
Delivery Time:	5-7 working days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Belgium

Certification:

Application:

Low/ Mid Temperature

Sound Power:

62 DBA

Cooling Capacity:

1.88 KW

Power Input:

1.60 KW

Low/High Side PS:

22.5/32.5 Bar(g)

Horse Power:

3HP

Packaging Details:

Standard export Wooden packing.

Supply Ability:

1000000 pieces/ year

Highlight:

3HP Hermetic Scroll Compressor

LFP-30X-EWL

Product Description

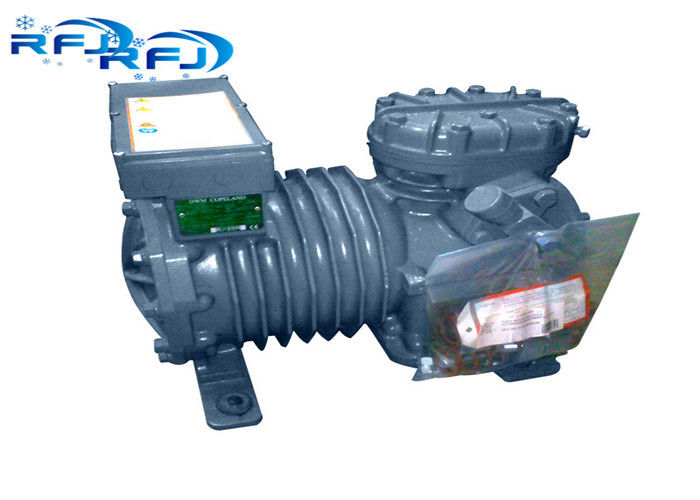

Copeland Reciprocating Compressor LFP-30X-EWL

Speciafication:

Small 2-cylinder semi-hermetic reciprocating compressors for medium/low temperature refrigeration and transport applications. These compressors are designed on the principle of standard reed valve type technology and feature an internal oil pump that guarantees optimum reliability in all operating conditions. The K-series ranges from 0.5 to 2 hp and the L-series from 2 to 5 hp with a displacement of 4 to 22.5 m3/h.

Refrigerants compatibilities: R-22, R-404A, R-407F, R-448A, R-449A

Voltages: 220-240 V at 50 Hz, 380-420 V at 50 Hz

Frequency: 50 Hz

Phase: 3

Performances given at conditions: -35°C evap. temp.; 40°C cond. temp.; 20°C suction gas return; 0 K subcooling for R-404A at 50 Hz

Cooling Capacity: 1.88 kW

Power Input: 1.60 kW

Displacement: 12.9 m³/h

Overall Dimension / Net Weight: 330 x 470 x 385 mm (W x L x H) / 80 kg

Low/High Side PS: 22.5/32.5 bar(g)

Maximum Operating Current: 6.8 A

Sound Power: 62 dBA

No. Cylinders: 2

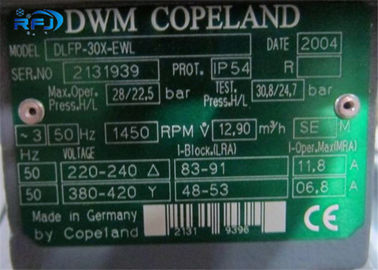

Replacement for the following models: DLFE-301-EWL, DLFP-30X-EWL

Features

Large operating envelope from 5°C to -45°C evaporating and up to 55°C condensing

Two motor sizes per displacement, optimized for different applications

Ideal for condensing unit or transport applications

Integrated oil pump for maximum reliability

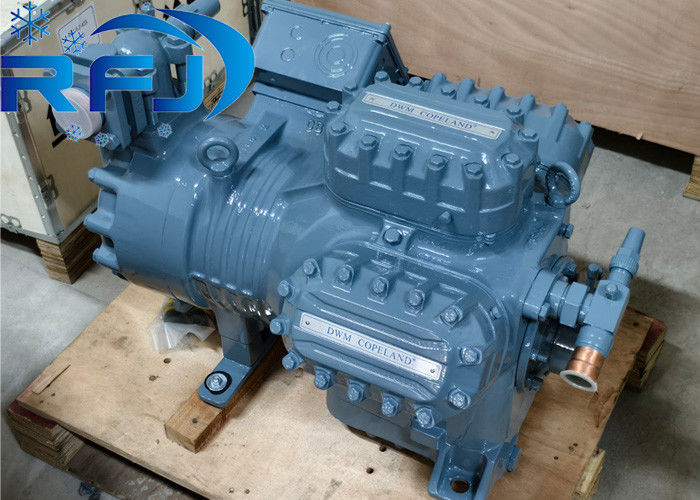

The 4S, 6S & 8S compressors have an internal capacity control, they work on the principle of blocking the suction

gas passage to two or more cylinders. They require the use of a special cylinder head and a control valve with

solenoid coil. These items may be ordered installed at the factory or in a kit form for later installation.

The suction port of the valve plate will be closed by a control piston (blocked suction). To prevent transport damage

the solenoid valve is supplied loose and the cylinder head is fitted with a shipping plate, therefore the shipping plate

with gasket must be removed and the solenoid valve with new gasket mounted. Do not put the compressor into

operation with the shipping plate this could result in erratic operation of the control piston and inadequate cooling

capacity.

Compressor model	LFP-30X-EWL
Application	HVAC
Horse Power	3HP
Net weight	80kg
Gross weight	100kg

LFP-30X-EWL 3HP Semi Hermetic Refrigeration Compressor 0
