| Model Number: | 2FES-2Y |
| MOQ: | 1 Piece |
| Price: | discussed |
| Delivery Time: | 5-7 Days |
| Payment Terms: | T/T, Western Union, MoneyGram |

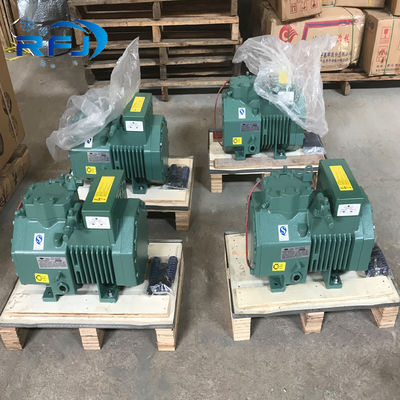

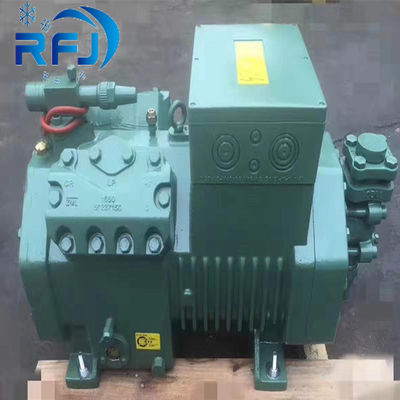

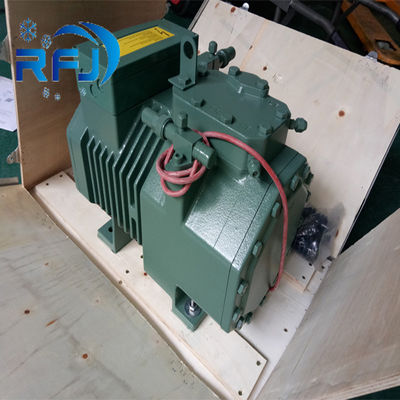

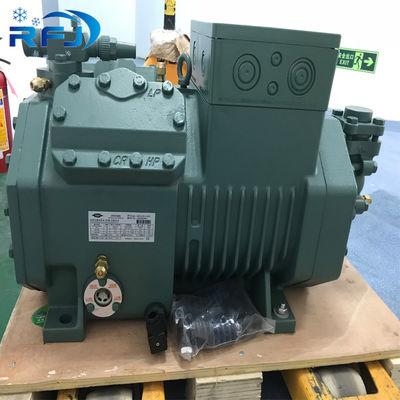

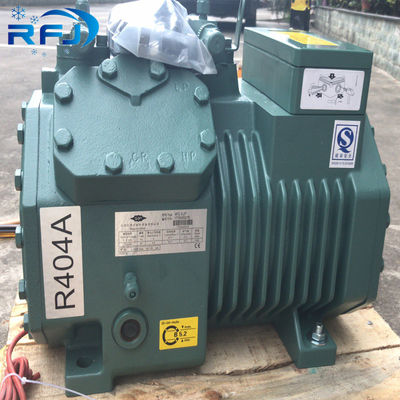

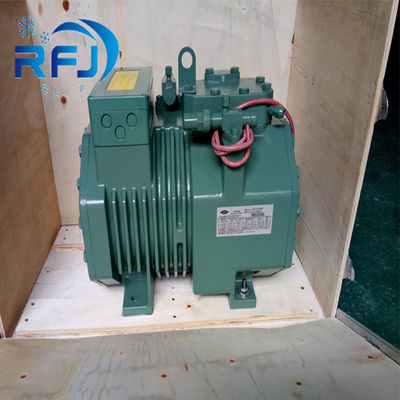

2 HP 2FES-2Y Green color Semi-Hermetic Compressor for Cold Room
1. We are first level agent for offering you competitive price.
2. We have all Models available.
3. We prodive fast delivery within 1-7 days after payment.
4. We provide perfect after sales service.
5. We have regular clients of product from both home and abroad.
Features
1) New valve plate design
2) Motor
3) Capacity control
4) Downward compatible
| SI | IP | |
| Displacement (1450 RPM 50Hz) | 95,3 m³/h | 3365.5 CFH |
| Displacement (1750 RPM 60Hz) | 115,02 m³/h | 4061.9 CFH |
| No. of cylinder x bore x stroke | 6 x 65 mm x 55 mm | 6 x 2.56 inch x 2.17 inch |
| Weight | 213 kg | 470 lb |
| Max. pressure (LP/HP) | 19 / 32 bar | 275 / 464 psi |
| Connection suction line | 54 mm - 2 1/8'' | 54 mm - 2 1/8'' |
| Connection discharge line | 35 mm - 1 3/8'' | 35 mm - 1 3/8'' |
| Oil type R134a/R407C/R404A/R507A/R407A/R407F | BSE32(Standard) / R134a tc>70°C: BSE55 (Option) | BSE32(Standard) / R134a tc>155°F: BSE55 (Option) |
| Oil type R22 (R12/R502) | B5.2(Option) | B5.2(Option) |
Extent of delivery(Standard) of 22hp cold room compressor 6JE-25 (6J-22.2)
| SI | IP | |
| Motor protection | SE-B2 | SE-B2 |
| Enclosure class | IP54 (Standard), IP66 (Option) | IP54 (Standard), IP66 (Option) |
| Vibration dampers | Standard | Standard |
| Oil charge | 4,75 dm³ | 167.2 fl oz |
Motor Data of 22hp cold room compressor 6JE-25 (6J-22.2)
| SI | IP | |
| Motor version | 2 | 2 |
| Motor voltage (more on request) | 380-420V PW-3-50Hz | 440-480V Y-3-60Hz UL |
| Max operating current | 46.4 A | 46.4 A |
| Winding ratio | 50/50 | 50/50 |
| Starting current (Rotor locked) | 141.0 A Y / 233.0 A YY | 245.0 A |
Sound Measurement of 22hp cold room compressor 6JE-25 (6J-22.2)
| SI | IP | |
| Sound power level (-10°C / 45°C) | 79,3 dB(A) @50Hz | 81,8 dB(A) @60Hz |
| Sound power level (-35°C / 40°C) | 85,0 dB(A) @50Hz | 87,5 dB(A) @60Hz |
| Sound pressure level @ 1m (-10°C / 45°C) | 71,3 dB(A) @50Hz | 73,8 dB(A) @60Hz |
| Sound pressure level @ 1m (-35°C / 40°C) | 77 dB(A) @50Hz | 79,5 dB(A) @60Hz |
| Sound power level (-10°C / 45°C) R134a | 77,3 dB(A) @50Hz | 79,8 dB(A) @60Hz |
| Sound pressure level @ 1m (-10°C / 45°C) R134a | 69,3 dB(A) @50Hz | 71,8 dB(A) @60Hz |
|
|
