| Brand Name: | Maneurop |
| Model Number: | MT125-4VI |
| MOQ: | 1pcs |
| Price: | community |
| Delivery Time: | 5-8days after your payment |
| Payment Terms: | T/T, Western Union |

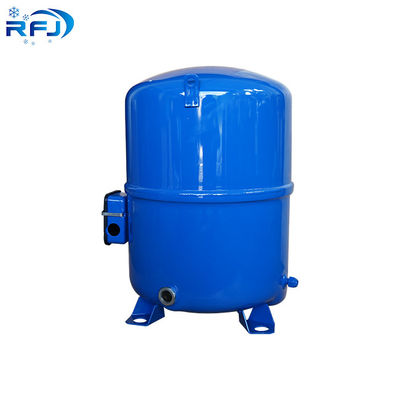

R22 3hp 50hz Maneurop Air conditioning MT125-4VI Compressors with new unit
1, Product Description:
Maneurop Reciprocating Compressors
Model NO : MT125HU4DVE
Brand technique:Reciprocating compressor
Motor protection:Internal overload protector
Power connections:Spade
Frequency [Hz]:50/60
Type:MT
Colour:Blue
Trademark:Maneurop()
Origin: China/France
Net weight:67kg
Oil charge [L]: 3.9 L
Connection type:Rotolock
Factory LP [bar]:25 bar
Compressor power supply [V/Ph/Hz]:400/3/50 460/3/60
Discharge connection height [mm]:125 mm
Glass mounting:Threaded
High Side TS Min:-35 °C
Refrigerant charge [kg] [Max]:10 kg
Swept volume [cm3]:215.44 cm3
2.product feature and application:
High Temperature. BtuH Capacity @ 45°F Evap. 78103. Compressor
Maneurop MT/MTZ series compressors are of the hermetic reciprocating type and are designed for Medium and high evaporating temperature applications. Refrigerant: R134a; R404A; R407A; R407C; R407F; R448A; R449A; R452A; R507A; R513A, Segment usage: Air conditioning;Refrigeration MT, Compressor power supply [V/Ph/Hz]: 400/3/50 460/3/60
3.Product details
| Nominal cooling capacity 60 kBTU/h | 124.57 KBtu/h |
| Nominal cooling capacity at 50Hz | 27.8 kW |
| Nominal cooling capacity at 60Hz | 36.5 kW |
| Certification | CE |
| Configuration code | Single |
| Segment usage | Air conditioning Refrigeration MT |
Maneurop® reciprocating compressors from Commercial Compressors are specially designed for applications with a wide range of operating conditions. All components are of high quality and precision in order to assure a long product life. Maneurop® MT and MTZ series compressors are of the hermetic reciprocating type and are designed for medium and high evaporating temperature applications. The positive benefits of internal motor protection, high efficiency circular valve design and high torque motors provide for a quality installation. MT & MTZ have the same mechanical and motor design. MT is charged with mineral oil while MTZ with polyester oil. These compressor ranges can be used with a large choice of refrigerants according their compatibility with the oil.
6,Purchase instructions
1. rember add oil before you use it if you bought from our factory transport by air
1. Every pcs of model will Rigorous testing before deliever to our clients
2. Be care of the wooden case before you open it ,The foundation is fixed with screws
7. Our main lines
1. compressors
2. performer compressors: SM, SZ, SH SERIES
3.Copeland compressors: VR, ZR, ZB, ZH SERIES
4.Maneurop piston compressors:MT, MTZ NTZ, MPZ SERIES
Also. original valves, controls and selected parts:
1. TE, TDE, TGE, PHT SERIES TERMOSTATIC EXPANSION VALVES
2· ETS SERIES EXPANSION VAVLES
3· EVR SERIES ECPANSION VAVLES AND
4· KP1,KP5,KP15 SERIES PRESSURE CONTROL
5· DCL DML LIQUID LINE FILTER DRIER
Video
Video
|
|
