| Model Number: | SM124S4VC |
| MOQ: | 1 piece |
| Price: | Discussed |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union |

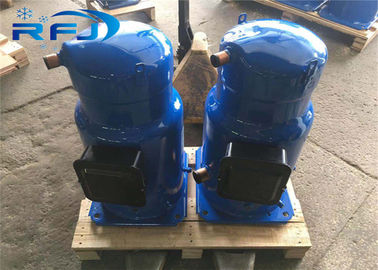

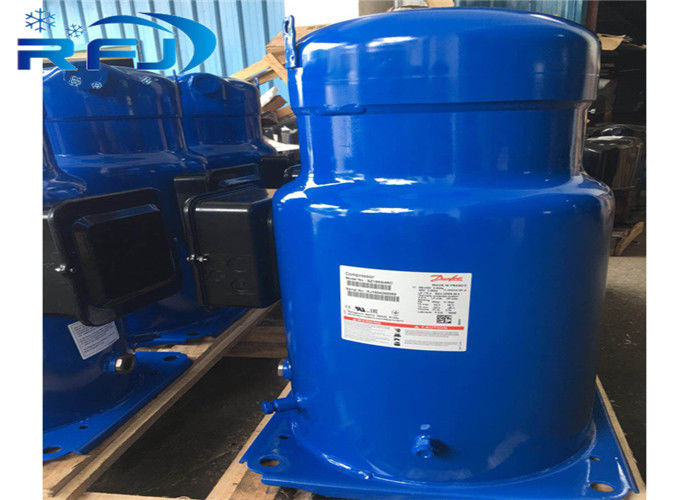

AC SCROLL COMPRESSOR SM124S4VC FOR REFRIGERATOR CONDENSING UNIT AIR CONDITIONING
Product Description:
Performer compressors are scroll compressors used for both 50Hz and 60Hz,
can be used for R22,R407c
SZ seires: ( for R407)
SZ084-4VM(7HP)
SZ090-4VM(8HP)
SZ100-4VM(8HP)
SZ110-4VM(9HP)
SZ120-4VM(10HP)
SZ148-4VM(12HP)
SZ161-4VM(13HP)
SZ/Y185-4VM(15HP)
| Model | SM124S4VC |
| COP | 3.56 |
| Displacement | 35.6m³/ h |
| Oil charge | 3.30L |
| Net weight | 64kg |
| Color | Blue |
| Power supply | 380-400V/3~/50 Hz - 460V/3~/60 Hz |
| 50Hz Data | |||||||||
| Model | Nominal Cap. 60HZ | Nominal cooling capacity | Power input | Cop | E.E.R. | Swept Volume | Displacement | Oil charge | |
| TR | W | Btu/h | KW | W/W | Btu/h/W | cm/rew | m/h | dm | |
| SM084 | 7 | 20400 | 69600 | 6.12 | 3.33 | 11.4 | 114.5 | 19.92 | 3.3 |
| SM090 | 7.5 | 21800 | 74400 | 6.54 | 3.33 | 11.4 | 120.5 | 20.97 | 3.3 |
| SM100 | 8 | 23100 | 79000 | 6.96 | 3.33 | 11.3 | 127.2 | 22.13 | 3.3 |
| SM110 | 9 | 25900 | 88600 | 7.82 | 3.32 | 11.3 | 144.2 | 25.09 | 3.3 |
| SM112 | 9.5 | 27600 | 94400 | 7.92 | 3.49 | 11.9 | 151.5 | 26.36 | 3.3 |
| SM115 | 9.5 | 28000 | 95600 | 8.31 | 3.37 | 11.5 | 155 | 26.97 | 3.8 |
| SM120 | 10 | 30100 | 102800 | 8.96 | 3.36 | 11.5 | 166.6 | 28.99 | 3.3 |
| SM124 | 10 | 31200 | 106300 | 8.75 | 3.56 | 12.2 | 169.5 | 29.5 | 3.3 |
