| Model Number: | 8FE-70Y |
| MOQ: | 1PCS |
| Price: | Discuss |
| Delivery Time: | 5-8 days after payment |
| Payment Terms: | T/T, Western Union |

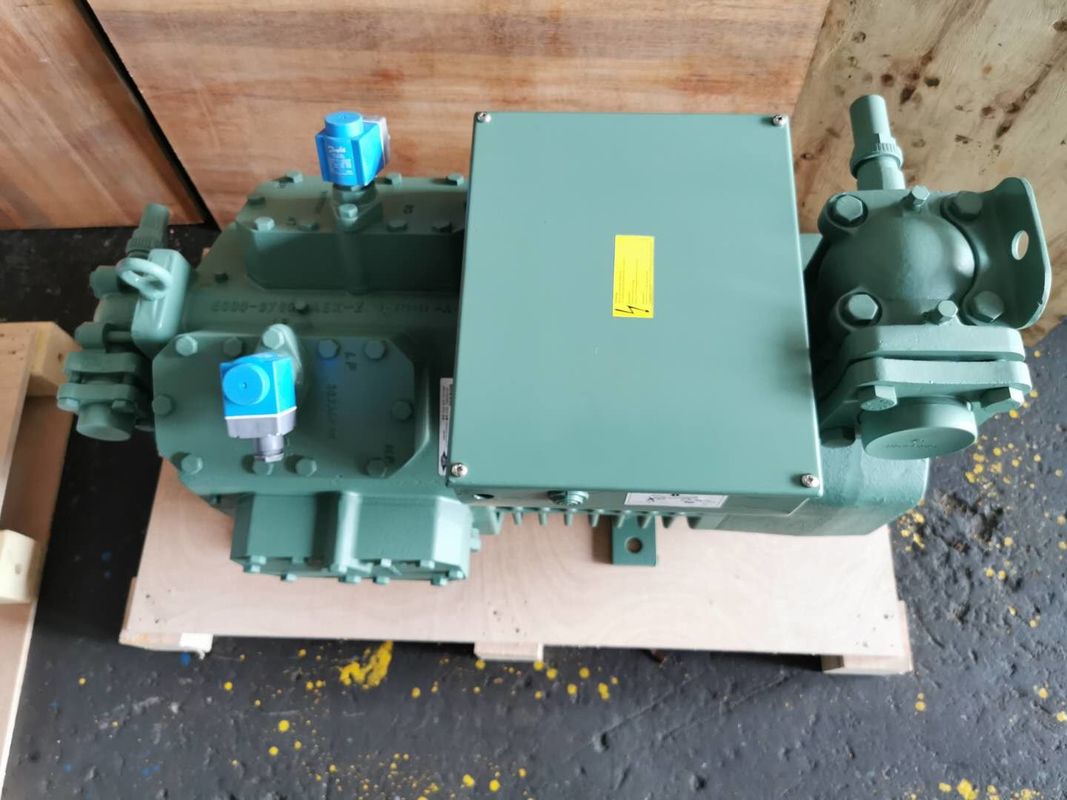

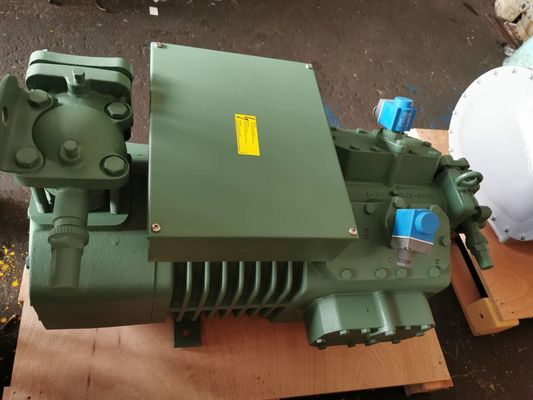

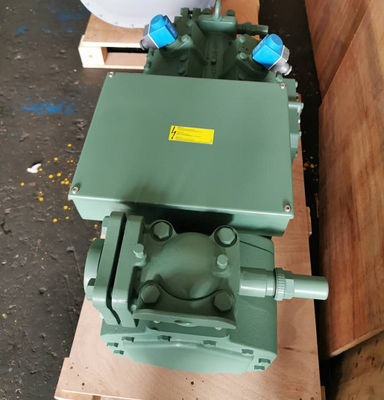

Reciprocating compressor 8FE-70Y FOR R134A. R404A. R507. 230V-3-50HZ
1, Product Description:
Model: 8FE-70Y
Voltage::230V-3-50HZ
motor version :1
Displace-ment :221
number of cylinders:8
oil charge:5
weight:374
2, product feature and application:
New valve plate design
Motor
Capacity control
Downward compatible
Drive gear
New piston and connecting rod design
3,Product details
| Technical Data | |
| Displacement (1450 RPM 50Hz) | 221 m³/h |
| Displacement (1750 RPM 60Hz) | 266,7 m³/h |
| No. of cylinder x bore x stroke | 8 x 82 mm x 60 mm |
| Weight | 374 kg |
| Max. pressure (LP/HP) | 19 / 28 bar |
| Connection suction line | 76 mm - 3 1/8'' |
| Connection discharge line | 54 mm - 2 1/8'' |
| Oil type R134a/R407C/R404A/R507A/R407A/R407F | BSE32(Standard) / R134a tc>70°C: BSE55 (Option) |
| Oil type R22 (R12/R502) | B5.2 (Option) |
| Motor data | |
| Motor version | 1 |
| Motor voltage (more on request) | 380-420V PW-3-50Hz |
| Max operating current | 139.0 A |
| Winding ratio | 60/40 |
| Starting current (Rotor locked) | 401.0 A D / 590.0 A DD |
| Max. Power input | 78,0 kW |
| Extent of delivery (Standard) | |
| Motor protection | SE-B2 |
| Enclosure class | IP54 (Standard) |
| Vibration dampers | Standard |
| Oil charge | 5,0 dm³ |
| Available Options | |
| Discharge gas temperature sensor | Option |
| Capacity control | 100-75-50% (Option) |
| Capacity Control - infinite | 100-50% (Option) |
| Crankcase heater | 140 W (Option) |
| Oil pressure monitoring | MP54 (Option), Delta-PII (Option) |
| Sound measurement | |
| Sound power level (+5°C / 50°C) | 87,5 dB(A) @ 50Hz |
| Sound power level (-10°C / 45°C) | 89,0 dB(A) @ 50Hz |
| Sound pressure level @ 1m (+5°C / 50°C) | 79,5 dB(A) @ 50Hz |
| Sound pressure level @ 1m (-10°C / 45°C) | 81,0 dB(A) @ 50Hz |
4, Our main compressor lines are :
· compressors,
· Copeland scroll compressors: CR,VR, ZB ,ZR, ZF,ZP SERIES
· Copeland Semi-hermetic compressors: DL,D2,D4,D6,D8 SERIES
· performer compressors: SM, SZ, SH SERIES
· commercial compressors: FR, SC SERIES
· Maneurop piston compressors:MT, MTZ, NTZ, MPZ SERIES
· Secop compressor, Carrier(Carlyle) compressor
· Hitachi compressor,Daikin compressor, Sanyo compressor
·Tecumseh compressor, LG compressor, Mitsubishi compressor,
·Toshiba compressor, Panasonic compressor, Embraci Aspera compressor
The advantage of the compressor:
Energy efficient
High-efficiency profile
Infinite or closely stepped capacity control
Optimum economiser operation
Universal
R134a, R407C and R22 (R404A, R507A upon request)
With and without economiser (ECO)
Flexible
Dual capacity control
Changeable between 4-stage and infinite capacity control-without retrofitting the compressor
Suction and discharge gas connections can be rotated in 90" increments
|
|
| Model Number: | 8FE-70Y |
| MOQ: | 1PCS |
| Price: | Discuss |

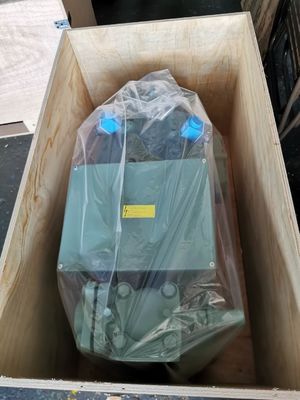

| Packaging Details: | wooden box |
