| Brand Name: | Carlyle |
| Model Number: | 06CC337 |
| MOQ: | 1pc |
| Price: | discussed |
| Delivery Time: | 7-10 working days after receiving payment |
| Payment Terms: | T/T, Western Union |

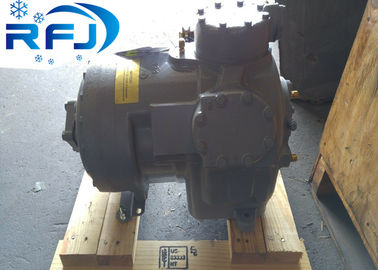

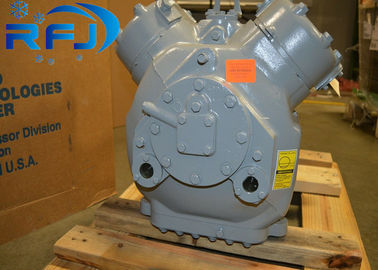

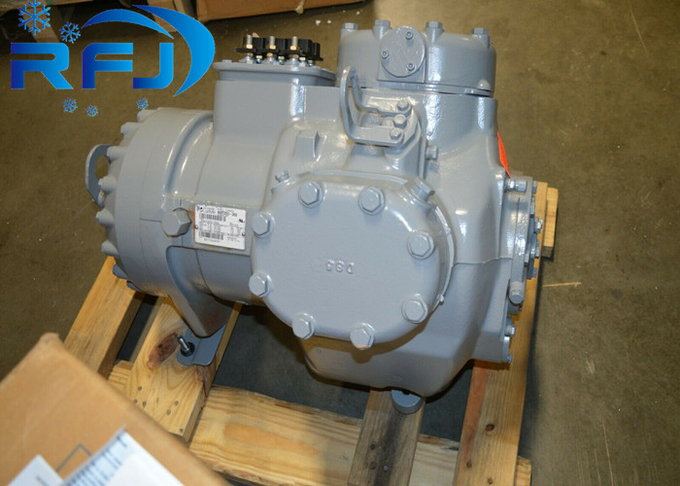

6 Cylinders Two Stage Carlyle Compressor Refrigerant R404 Carrier Model 06CC337
Features and Benefits
• Very high capacities and efficiencies when compared to a single-stage, low-temperature compressor
• Very low compression ratios for low temperature refrigeration
• Two-stage booster performance in a single-compressor body
• Subcooling allows for smaller system refrigerant lines and therefore a smaller refrigerant charge
• Simple application of subcooling
• Eliminates compressor short cycling as capacity remains stable over a wide range of head pressures
• No separate subcooling rack or compressor needed
| brand | carrier |
| model | 06CC337 |
| Horse power | 10 |
| Refrigerant | R502/R404A/R507/R12/R134A/R22 |
| Voltage | 380-420V |
| Oil charge(Pints) | 9.5 |
| TYPE | reciprocating two stage compressor |
| MOQ | 1 |
| packing | wooden case |
| weight(kg) | 156 |
Carlyle 06cc series ompound cooling comprsoor
| CARRIER/ CARLYLE | MOTOR Size | DISPLACEMENT AT 1750 RPM | NO.OFCYL | BORE | STROKE | OIL CHARGE | NETWEIGHT | BODY SIZE | ||||||||
| MODEL NUMBER | HP | KW | CFM | L/M | CFH | L/H(1,000) | in. | mm | in. | mm | Pints | Liters | Lb | Kg | ||
| 06CC017 | 5 | 3.7 | 15.9 | 450 | 954 | 27.01 | 6 | 2 | 50.8 | 1 1/4 | 31.7 | 9.5 | 4.5 | 330 | 150 | D |
| 06CC125 | 6 1/2 | 4.9 | 23.9 | 677 | 1435 | 40.6 | 6 | 2 | 50.8 | 1 1/4 | 31.8 | 9.5 | 4.5 | 330 | 150 | D |
| 06CC228 | 6 1/2 | 5.6 | 28 | 793 | 1680 | 47.57 | 6 | 2 | 50.8 | 1 15/32 | 37.3 | 9.5 | 4.5 | 340 | 154 | D |
| 06CC337 | 10 | 7.5 | 37.1 | 1050 | 2225 | 63.03 | 6 | 2 | 50.8 | 1 15/16 | 49.2 | 9.5 | 4.5 | 345 | 156 | D |
| 06CC550 | 15 | 11.2 | 50.3 | 1424 | 3016 | 85.45 | 6 | 2 11/16 | 68.3 | 1 63/64 | 50.4 | 19 | 9 | 545 | 247 | E |
| 06CC665 | 20 | 14.9 | 68.3 | 1934 | 4096 | 116 | 6 | 2 11/16 | 68.3 | 1 63/64 | 50.4 | 19 | 9 | 555 | 252 | E |
| 06CC675 | 20 | 14.9 | 75.4 | 2135 | 4524 | 128.1 | 6 | 2 11/16 | 68.3 | 2 3/16 | 55.6 | 19 | 9 | 555 | 252 | E |
| 06CC899 | 30 | 22.4 | 99 | 2803 | 5940 | 168.2 | 6 | 2 11/16 | 68.3 | 2 7/8 | 73 | 19 | 9 | 580 | 263 | E |
Main compressor lines are:
· compressors
· performer compressors: SM, SZ, SH SERIES
· commercial compressors: FR, SC SERIES
· Copeland compressors: VR, ZR, ZB, ZH SERIES
· Maneurop piston compressors:MT, MTZ NTZ, MPZ SERIES
Also. original valves, controls and selected parts:
· TE, TDE, TGE, PHT SERIES TERMOSTATIC EXPANSION VALVES
· ETS SERIES EXPANSION VAVLES
· EVR SERIES ECPANSION VAVLES AND
· KP1,KP5,KP15 SERIES PRESSURE CONTROLS
· DCL DML LIQUID LINE FILTER DRIERS
Q&A:
(1)Q:What is the packaging and shipping method?
A: By Sea: Export wooden package,with refrigerant oil .
By Air: Full-sealed wooden package, without refrigerant oil.
(2)Q:Which port does you ship from?
A:Guangzhou/Shenzhen.
(3)Q:How long is the warranty period for this product?
A: 1 year.
Ruifujie Technology Co., Limited Tel:+86 755 82153336 Fax:+86 755 26409896
