| Brand Name: | Copeland |
| Model Number: | VR28KM |
| MOQ: | 1 |
| Price: | discussed |
| Delivery Time: | 7-10 working days after receiving payment |
| Payment Terms: | T/T |

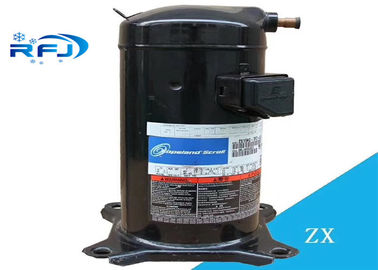

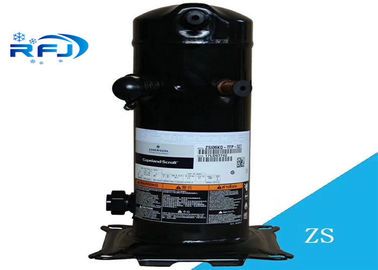

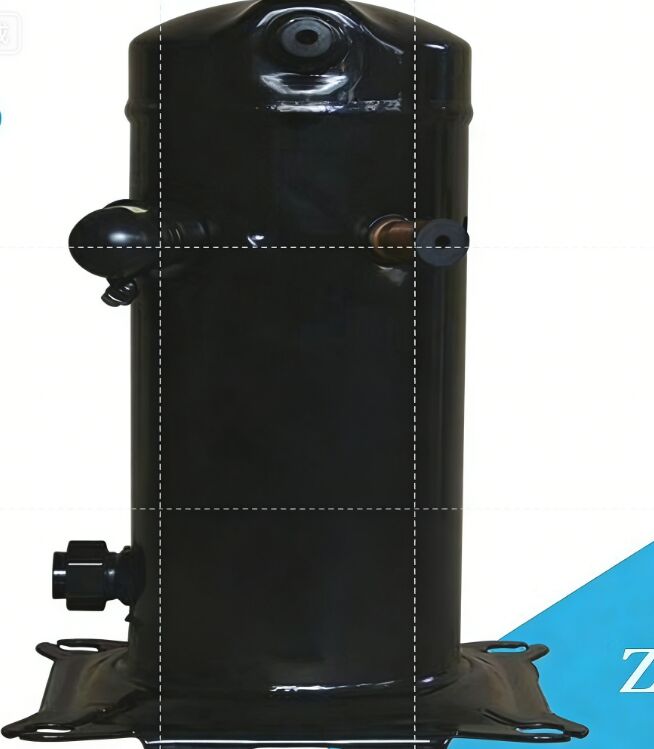

ow operation cost low noise copeland air-conditioning sroll refrigeration compressor VR28KM PFS 582 R22
| Brand name | copeland compressor |
| Place of origin | China |
| Model | VR28KM |
| Voltage | 220v |
| Frequency | 50hz |
| Power(hp) | 2.3hp |
| Capacity Watt | 6900 |
| Btu/h | 23000 |
| Input power | 2020 |
| COP | 3.34 |
| EER Btu/Wh | 11.4 |
| Displacement cc/rev. | 37.2 |
| N.W.(kg) | 19.6 |
Features:
Copeland ZR series scroll compressor can be used for air conditioning and refrigeration.
Refrigerant: R22 Volt/HZ: 220/380v 50/60 Hz
Nature of Copeland Compressor:
*Outstanding reliability;
*Fewer moving parts;
*Compliance feature offers unprecedented liquid handing capability;
*Internal motor protect motor from high temp and high current;
*Very low noise/gas pulsation;
*Five describes quieter than position compressor;
*Simplified system design;
*Unique unload start feature requires no start capacitors/relay high heat pump capacity due to nearly 100% volumetric efficiency;
*Selection scope ranges from 1HP to 30HP, and is up rising.
Techical Datas:
| model |
Horsepower (HP) |
refrigerating capacity(W) |
input power (W) |
electricity (A) |
displacement (cc/Rev.) |
displacement Oil capacity(L) |
Net weight(KG) | locked-rotor current(A) | Noise power |
| VR30KM | 2.5 | 7400 | 2210 | 4.5 | 40.5 | 0.77 | 19.6 | 35.0 | 63.0 |
| VR32KS | 2.7 | 7900 | 2410 | 4.3 | 44.3 | 0.74 | 22.1 | 34.0 | 68.0 |
| VR34KF | 2.8 | 8300 | 2560 | 4.5 | 46.2 | 0.74 | 22.1 | 34.0 | 68.0 |
| VR48KS | 4.0 | 11867 | 2800 | 6.1 | 65.6 | 1.36 | 30.0 | 50.0 | 68.0 |
| VR50KS | 4.2 | 12300 | 3620 | 6.7 | 67.4 | 1.36 | 30.0 | 59.0 | 68.0 |
| VR52KS | 4.3 | 12800 | 3770 | 7.0 | 70.4 | 1.48 | 30.0 | 59.0 | 69.0 |
| VR52KM | 4.3 | 13068 | 3750 | 7.1 | 70.4 | 1.48 | 30.4 | 58.0 | 69.0 |
| VR54KS | 4.5 | 13200 | 3920 | 7.4 | 73.1 | 1.48 | 30.0 | 58.0 | 69.0 |
| VR54KM | 4.5 | 13566 | 3890 | 7.2 | 73.0 | 1.48 | 30.4 | 58.0 | 69.0 |
| VR57KF | 4.8 | 13900 | 4320 | 9.1 | 77.2 | 1.36 | 30.0 | 58.7 | 69.0 |
| VR57KS | 4.8 | 13900 | 4130 | 7.8 | 77.2 | 1.36 | 28.6 | 58.0 | 69.0 |
| VR61KF | 5.1 | 14900 | 4470 | 8.3 | 82.7 | 1.36 | 30.0 | 58.0 | 69.0 |
| VR84KS | 7.0 | 20800 | 6000 | 11.9 | 113.6 | 2.51 | 57.2 | 90.0 | 73.0 |
| VR94KS | 7.8 | 23300 | 6750 | 12.5 | 127.2 | 2.51 | 57.2 | 86.0 | 73.0 |
| VR108KS | 9.0 | 26400 | 7550 | 13.7 | 142.9 | 3.25 | 59.9 | 100.0 | 74.0 |
| VR125KS | 10.4 | 31000 | 9000 | 15.8 | 167.2 | 3.25 | 61.2 | 110.0 | 75.0 |
| VR125KF | 10.4 | 31100 | 9140 | 16.7 | 167.2 | 3.25 | 61.2 | 153.0 | 75.0 |
| VR144KS | 12.0 | 35000 | 10100 | 17.6 | 190.9 | 3.25 | 61.2 | 110.0 | 76.0 |
| VR144KF | 12.0 | 35200 | 10250 | 18.5 | 190.9 | 3.25 | 61.2 | 153.0 | 76.0 |
| VR160KS | 13.3 | 38200 | 11300 | 20.2 | 209.3 | 3.25 | 64.9 | 133.0 | 79.0 |
| VR190KS | 15.8 | 45600 | 13600 | 25.6 | 249.3 | 3.25 | 66.2 | 168.0 | 82.0 |
Techical Datas:
| model |
Horsepower (HP) |
refrigerating capacity(W) |
input power (W) |
electricity (A) |
displacement (cc/Rev.) |
displacement Oil capacity(L) |
Net weight(KG) | locked-rotor current(A) | Noise power |
| VR28KM | 2.3 | 6900 | 2020 | 9.2 | 37.2 | 0.77 | 19.6 | 52.9 | 63.0 |
| VR30KM | 2.5 | 7400 | 2210 | 10.1 | 40.5 | 0.77 | 19.6 | 52.9 | 63.0 |
| VR31KM | 2.6 | 7800 | 2370 | 11.0 | 42.5 | 0.77 | 19.6 | 55.5 | 63.0 |
| VR34KF | 2.8 | 8300 | 2560 | 11.7 | 46.2 | 0.77 | 22.1 | 62.0 | 73.0 |
Video
Video
Video
Video
|
|
| Brand Name: | Copeland |
| Model Number: | VR28KM |
| MOQ: | 1 |
| Price: | discussed |
| Packaging Details: | Wooden case or 12 units in one pallet |
| Payment Terms: | T/T |
ow operation cost low noise copeland air-conditioning sroll refrigeration compressor VR28KM PFS 582 R22
| Brand name | copeland compressor |
| Place of origin | China |
| Model | VR28KM |
| Voltage | 220v |
| Frequency | 50hz |
| Power(hp) | 2.3hp |
| Capacity Watt | 6900 |
| Btu/h | 23000 |
| Input power | 2020 |
| COP | 3.34 |
| EER Btu/Wh | 11.4 |
| Displacement cc/rev. | 37.2 |
| N.W.(kg) | 19.6 |
Features:
Copeland ZR series scroll compressor can be used for air conditioning and refrigeration.
Refrigerant: R22 Volt/HZ: 220/380v 50/60 Hz
Nature of Copeland Compressor:
*Outstanding reliability;
*Fewer moving parts;
*Compliance feature offers unprecedented liquid handing capability;
*Internal motor protect motor from high temp and high current;
*Very low noise/gas pulsation;
*Five describes quieter than position compressor;
*Simplified system design;
*Unique unload start feature requires no start capacitors/relay high heat pump capacity due to nearly 100% volumetric efficiency;
*Selection scope ranges from 1HP to 30HP, and is up rising.
Techical Datas:
| model |
Horsepower (HP) |
refrigerating capacity(W) |
input power (W) |
electricity (A) |
displacement (cc/Rev.) |
displacement Oil capacity(L) |
Net weight(KG) | locked-rotor current(A) | Noise power |
| VR30KM | 2.5 | 7400 | 2210 | 4.5 | 40.5 | 0.77 | 19.6 | 35.0 | 63.0 |
| VR32KS | 2.7 | 7900 | 2410 | 4.3 | 44.3 | 0.74 | 22.1 | 34.0 | 68.0 |
| VR34KF | 2.8 | 8300 | 2560 | 4.5 | 46.2 | 0.74 | 22.1 | 34.0 | 68.0 |
| VR48KS | 4.0 | 11867 | 2800 | 6.1 | 65.6 | 1.36 | 30.0 | 50.0 | 68.0 |
| VR50KS | 4.2 | 12300 | 3620 | 6.7 | 67.4 | 1.36 | 30.0 | 59.0 | 68.0 |
| VR52KS | 4.3 | 12800 | 3770 | 7.0 | 70.4 | 1.48 | 30.0 | 59.0 | 69.0 |
| VR52KM | 4.3 | 13068 | 3750 | 7.1 | 70.4 | 1.48 | 30.4 | 58.0 | 69.0 |
| VR54KS | 4.5 | 13200 | 3920 | 7.4 | 73.1 | 1.48 | 30.0 | 58.0 | 69.0 |
| VR54KM | 4.5 | 13566 | 3890 | 7.2 | 73.0 | 1.48 | 30.4 | 58.0 | 69.0 |
| VR57KF | 4.8 | 13900 | 4320 | 9.1 | 77.2 | 1.36 | 30.0 | 58.7 | 69.0 |
| VR57KS | 4.8 | 13900 | 4130 | 7.8 | 77.2 | 1.36 | 28.6 | 58.0 | 69.0 |
| VR61KF | 5.1 | 14900 | 4470 | 8.3 | 82.7 | 1.36 | 30.0 | 58.0 | 69.0 |
| VR84KS | 7.0 | 20800 | 6000 | 11.9 | 113.6 | 2.51 | 57.2 | 90.0 | 73.0 |
| VR94KS | 7.8 | 23300 | 6750 | 12.5 | 127.2 | 2.51 | 57.2 | 86.0 | 73.0 |
| VR108KS | 9.0 | 26400 | 7550 | 13.7 | 142.9 | 3.25 | 59.9 | 100.0 | 74.0 |
| VR125KS | 10.4 | 31000 | 9000 | 15.8 | 167.2 | 3.25 | 61.2 | 110.0 | 75.0 |
| VR125KF | 10.4 | 31100 | 9140 | 16.7 | 167.2 | 3.25 | 61.2 | 153.0 | 75.0 |
| VR144KS | 12.0 | 35000 | 10100 | 17.6 | 190.9 | 3.25 | 61.2 | 110.0 | 76.0 |
| VR144KF | 12.0 | 35200 | 10250 | 18.5 | 190.9 | 3.25 | 61.2 | 153.0 | 76.0 |
| VR160KS | 13.3 | 38200 | 11300 | 20.2 | 209.3 | 3.25 | 64.9 | 133.0 | 79.0 |
| VR190KS | 15.8 | 45600 | 13600 | 25.6 | 249.3 | 3.25 | 66.2 | 168.0 | 82.0 |
Techical Datas:
| model |
Horsepower (HP) |
refrigerating capacity(W) |
input power (W) |
electricity (A) |
displacement (cc/Rev.) |
displacement Oil capacity(L) |
Net weight(KG) | locked-rotor current(A) | Noise power |
| VR28KM | 2.3 | 6900 | 2020 | 9.2 | 37.2 | 0.77 | 19.6 | 52.9 | 63.0 |
| VR30KM | 2.5 | 7400 | 2210 | 10.1 | 40.5 | 0.77 | 19.6 | 52.9 | 63.0 |
| VR31KM | 2.6 | 7800 | 2370 | 11.0 | 42.5 | 0.77 | 19.6 | 55.5 | 63.0 |
| VR34KF | 2.8 | 8300 | 2560 | 11.7 | 46.2 | 0.77 | 22.1 | 62.0 | 73.0 |
Video
Video
Video
Video
