| Brand Name: | DAMAI |
| Model Number: | DAMAIHNS9 |
| MOQ: | 1 piece |
| Price: | discussed |
| Delivery Time: | 12-15 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram |

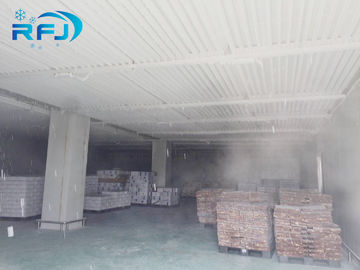

Large cold room for Sea food and Beef cold storage with hot promotion
| Design: | Depends on customers requirements. |
| Cooling Method: | Direct Cooling And Indirect Refrigeration |
| Insulation Material: | polyurethane sandwich insulation panel |
| Insulation Material Thickness: | 100mm, 150mm, 200mm, 250mm |
| Insulation Material Density: | ≥42Kg per cubic metre |
| Steel Plate Thickness: | 0.6mm |
| Insulation Material Fire Rating: | B2 |
| Connection: | Concave and convex chamfer CAM lock hook connection |
| Corners Connection: | L type angle panel |
| Refrigeration Equipment: | Condensing Unit, Air Cooler, |
| Equipment Configuration: | Condenser, Reservoirs, Gas-Liquid Separator, Oil Separator, H/L Pressure Controller, Condensing Pressure Controller, liquid Sight Glass, Solenoid Valve, Filter, H/L Pressure Gauge, Oil Pressure Gauge, Junction Box |
| Brand Compendents: | , Alco, Castol |
Main Features:
1. Modular insulation panel, CAM hook, Installation is simple, easy to install
2. Refrigeration: R22, R404A,
3. Temperature Range: From - 50°C To + 20°C
4. Room Size: According to the customer request design
5. Functions: Keep Fresh, Frozen, Quick-Freeze, Fire-Proof,
6. The world famous brand refrigeration fittings
7. Long life cycle
8. Full automatic control, easy to operation and management
9. Defrost Type: Electric defrosting
10.High efficiency and energy saving design
Different Temperature:
1.0 °C ~ + 22°C: Communication Station, Mushroom Plant, Medicines Storage, Processing Room, Packing Room
2.-5 °C ~ + 5 °C: Pre-Cooling, Keep Fresh,
3.-10 °C ~ -20 °C: Freezer Storage
4.-25 °C ~ -30 °C: Low Temperature Storage, Quick-Freeze
5.-35 °C ~ -40 °C: Blast Freezer, Quick-Freeze
Main Applications:
Hotels, hospitals, blood banks, poultry slaughter and processing, aquaculture and processing, mushroom cultivation, agricultural product processing, dairy production, pharmaceutical processing and logistics, beverage production and processing, beer production and cooling, large-scale logistics storage, chemical product cooling, leather manufacturing, injection molding, machine cooling, steel cooling, ommunication equipment, ship manufacturing and more.
Cooling Type
| Air Cooled Type | Condenser Fan |
| Water Cooled Type | Water Cooled Condenser and Cooling Tower |
| Evaporative Cooled Type | Evaporative Condenser |
Room Size Type
| Room Size | Small | Medium | Large |
| Volume Range | <50m³ | 50m m³~300 m³ | >300 m³ |
Temperature Table for Reference
| Cold Storage Goods | temperature range |
| Processing Room | 10℃ |
| Fruit, Vegetable, Dry food | +5℃ ~-5℃ |
| Medicine, Cake, Pastry, Chemical Material | 0℃ ~-5℃ |
| Ice Storage Room | -5℃ ~-10℃ |
| Fish, Meat Storage | -18℃ ~-25℃ |
| Deep Freezer. | -25℃ ~-35℃ |
Compressor Type and Condenser
| Compressor Type | (Germany) | Refcomp(italy) | Copeland(US) | Manurope(France) |
| Condenser | Air Cooled | Water Cooled | Evaporating |
Panels’ Information
| Office Foam Panel | 50mm thickness |
| Processing Room 10℃ | 50mm/ 75mm PU |
| 5℃ | 75mm/ 100mm PU |
| -18℃ | 100mm/ 150mm PU |
| -25℃ / -35℃ | 150mm/200mm PU |
| Panel Steel Cover | SS, GI, aluminum etc |
| Panels | |||
| Cold room insulation panel:use 100%polyurethane insulation panel,density about 38~46kg /m3,with gasket,with flame retardant,panel thickness:100mm~200mm, standard width of panel is 960mm. | |||
| Cold Room Tempreture | Thickness Of The Cold Room Wall and Proof | ||
| 5—15 ℃ | 75mm | ||
| -15—5 ℃ | 100mm | ||
| -30—-15℃ | 150mm | ||
| Low the -30℃ | 200mm | ||
| Swing door,Return Door and sliding door for choice. | |||
| Swing door:manual opened,automatic,etc. | |||
| Door board made with special pressing technology PU material. | |||
| Door frame:color steel or stainless steel. | |||
| Surface material:color steel or stainless steel with protecting film. | |||
| Components | |||
| Condensing unit:,Copeland,Maneurop,Fusheng,etc. | |||
| Evaporator:air-cooler. | |||
| Insulation Panel:PU,EPS. | |||
| Other accessories:world-famous brands,like ,Castle,Every,Control,Siemens,LG,Schneider | |||
| Cooling Type | |||
| Air Cooled Type | Conderser Fan | ||
| Water Cooled Type | Water cooled condenser and cooling tower | ||
| Evaporative Cooled Type | Evaporative Condenser | ||
| Cold room Volume Classification Table | |||
| Cold room size | Small | Middle | Large |
| Volume Range | <500m³ | 500~10000m³ | >10000m³ |
We can according to your needs to provide the most professional custom services.
|
|
