| Brand Name: | SANYO |
| Model Number: | C-SB263H6B |
| MOQ: | 1 piece |
| Price: | discussed |
| Delivery Time: | 5-7days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |

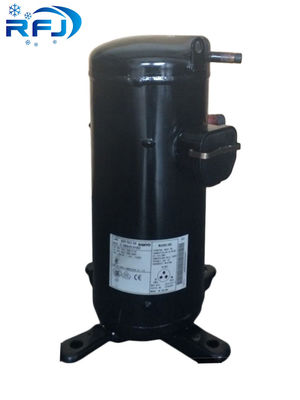

3.5HP Sanyo scroll compressor C-SB263H6B, sanyo B6 Series compressor
SANYO scroll compressors are used in air conditioning, heat pump and commercial refrigeration including high, medium and low temperature applications.
1),No need for expensive and complicated high power inverters and therefore no electromagnetic interferences.
2),Optimum system oil: Digital scroll compressors run at full speed at all time, neer slowing or stopping oil flow to the bearings.
3),Superior humidity and temperature control for improved human comfort.
4),Highest performance at full load.
5),Precise suction pressure control with associated energy savings.
6),Ease of design.
| Sanyo Compressors Specification Sheet | ||
| Model No | C-SB263H6C | |
| Application | ||
| Evaporating Temp Range | (℃) | -15~12 |
| Refrigerant | R22 | |
| Compressor Cooling | Natural Cooling | |
| Rated Performance | ||
| Capacity | (W) | 11100 |
| Input | (W) | 3550 |
| Current | (A) | 12.2 |
| Sound Pressure Level(1m) | (dB(A)) | 62max |
| Rating Conditions | ||
| Power Source | 3ph,60Hz,208-230V | |
| Evaporating Temp | (℃) | 7.2 |
| Condensing Temp | (℃) | 54.4 |
| Suction Gas Temp | (℃) | 18.3 |
| Liquid Temp | (℃) | 46.1 |
| Ambient Temp | (℃) | 35 |
| Compressor | ||
| Type | Hermetic Scroll | |
| Displacement | (cm3/rev) | 51.8 |
| Suction Line Connection | (Φmm OD) | 22.23 |
| Discharge Line Connection | (Φmm OD) | 12.7 |
| Oil Type | L-DRC/B56 | |
| Initial Oil Charge | (ml) | 1700 |
| Mass(Incl.Oil) | (kg) | 36.5 |
| Motor | ||
| Motor Type | 3Ph-Induction Motor | |
| Revolution | (min-1) | 3500 |
| Voltage Range | (V) | 187~253 |
| Start Capacitor | MFD/V | n/a |
| Run Capacitor | MFD/V | n/a |
| RLA | (A) | 15 |
| MCC | (A) | 21 |
| LRA | (A) | 115 |
Sanyo B6 Series compressor
| Model | Input Power | Capacity | Electricity | Refrigerant | Qty/Pallet | |||
| (HP) | (W) | BTU | V | ph | Hz | (pcs) | ||
| C-SB261H6C | 3.5 | 11200 | 38080 | 208-230 | 1 | 60 | R22 | 12 |
| C-SB261H6A | 3.5 | 12100 | 41140 | 208-230 | 1 | 60 | R22 | 12 |
| C-SB301H6B | 4 | 14500 | 49300 | 208-230 | 1 | 60 | R22 | 12 |
| C-SB351H6A | 4.5 | 16700 | 56780 | 208-230 | 1 | 60 | R22 | 12 |
| C-SB371H6A | 5 | 18000 | 61200 | 208-230 | 1 | 60 | R22 | 12 |
| C-SB263H6B | 3.5 | 11900 | 40460 | 208-230 | 3 | 60 | R22 | 12 |
| C-SB263H6C | 3.5 | 11100 | 37740 | 208-230 | 3 | 60 | R22 | 12 |
| C-SB303H6A | 4 | 14400 | 48960 | 208-230 | 3 | 60 | R22 | 12 |
| C-SB303H6B | 4 | 14400 | 48960 | 208-230 | 3 | 60 | R22 | 12 |
| C-SB353H6B | 4.5 | 16800 | 57120 | 208-230 | 3 | 60 | R22 | 12 |
| C-SB353H6C | 4.5 | 16800 | 57120 | 208-230 | 3 | 60 | R22 | 12 |
| C-SB373H6A | 5 | 18100 | 61540 | 208-230 | 3 | 60 | R22 | 12 |
| C-SB373H6B | 5 | 18100 | 61540 | 208-230 | 3 | 60 | R22 | 12 |
| C-SB453H6A | 6 | 21300 | 72420 | 208-230 | 3 | 60 | R22 | 12 |
| C-SB453H6B | 6 | 21300 | 72420 | 208-230 | 3 | 60 | R22 | 12 |
| C-SC583H6H | 8 | 27900 | 175770 | 208-230 | 3 | 60 | R22 | 9 |
| C-SC603H6H | 8 | 29600 | 186480 | 208-230 | 3 | 60 | R22 | 9 |
| C-SC753H6H | 10 | 37000 | 233100 | 208-230 | 3 | 60 | R22 | 9 |
| C-SB303H6G | 4 | 14400 | 90720 | 208-230 | 3 | 60 | R22 | 9 |
| C-SB373H6G | 5 | 18100 | 114030 | 208-230 | 3 | 60 | R22 | 9 |
| C-SB453H6G | 6 | 21300 | 134190 | 208-230 | 3 | 60 | R22 | 9 |
| C-SC603H6K | 8 | 29600 | 186480 | 208-230 | 3 | 60 | R22 | |
| C-SC753H6K | 10 | 37000 | 233100 | 208-230 | 3 | 60 | R22 | |
| C-SBR120H16P | 3.5 | 11900 | 74970 | 208-230 | 1 | 60 | R22 | 12 |
| C-SBR145H16P | 4 | 14200 | 89460 | 208-230 | 1 | 60 | R22 | 12 |
| C-SBR165H16P | 4.5 | 16700 | 105210 | 208-230 | 1 | 60 | R22 | 12 |
